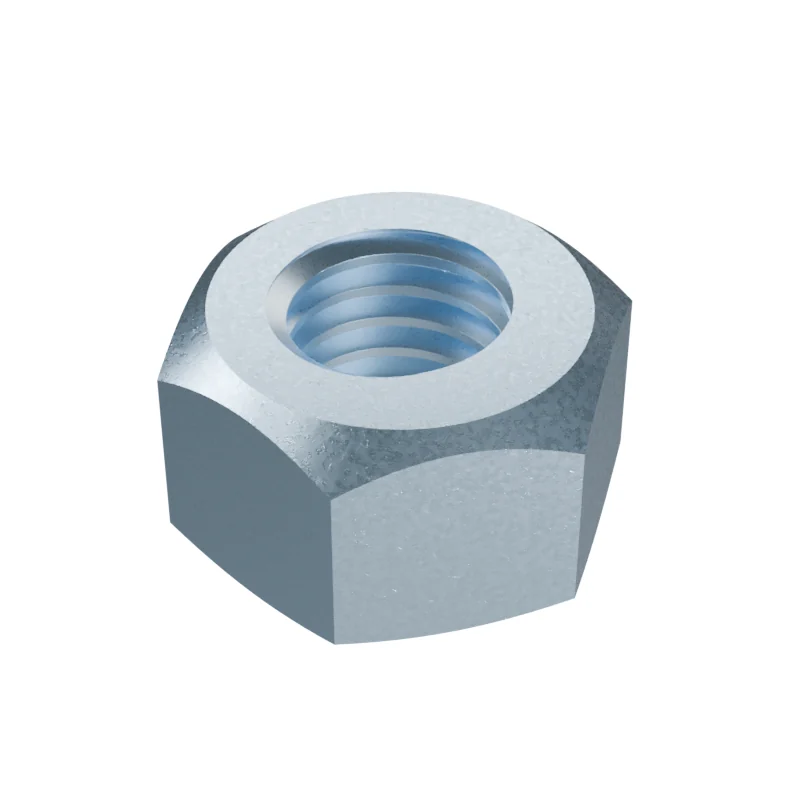

ISO 7042 M8 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M8
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| P | Thread pitch | 1.25 | – | – | 1.25 |
| da | Underhead diameter | – | – | 8.75 | 8.75 |
| da | Clearance diameter | – | 8 | – | 8 |
| dw | Bearing diameter | – | 11.63 | – | 11.6 |
| e | Width across corners | – | 14.38 | – | 14.38 |
| h | Thickness | – | 7.14 | 8 | 7.5–8 |
| mw | Wrenching height | – | 5.15 | – | 4.4 |
| s | Width across flats | – | 12.73 | 13 | 12.73–13 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 5.86 kg per 1 000 pieces · Bare steel, before coating and packing.171 pieces per kg
