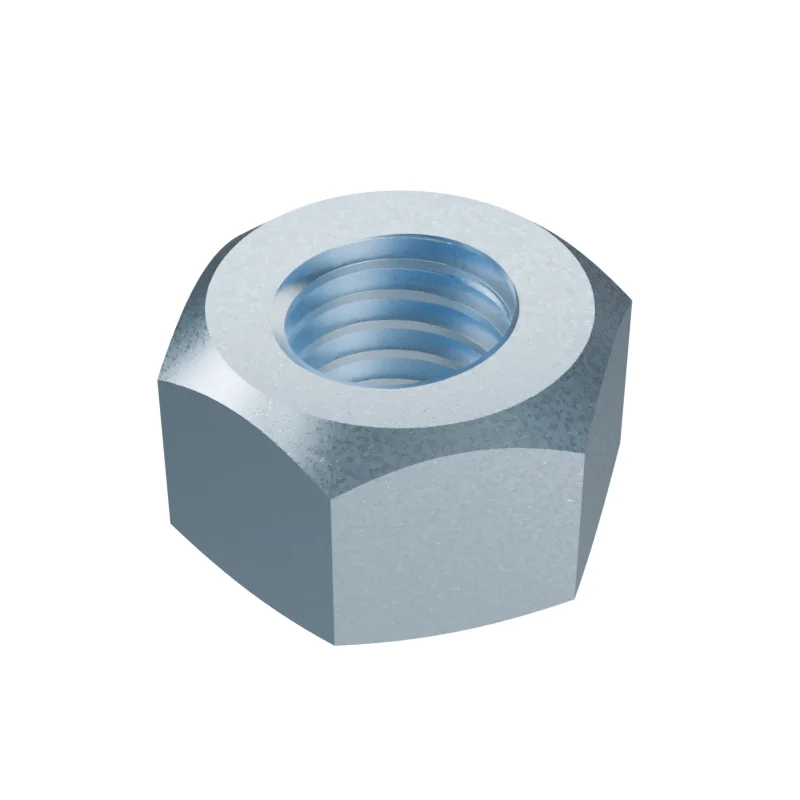

ISO 7042 M10 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M10
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| da | Underhead diameter | – | – | 10.8 | 10.8 |
| da | Clearance diameter | – | 10 | – | 10 |
| dw | Bearing diameter | – | 14.63 | – | 15.6 |
| e | Width across corners | – | 17.77 | – | 18.9 |
| h | Thickness | – | 8.94 | 10 | 9–10 |
| mw | Wrenching height | – | 6.43 | – | 5.5 |
| s | Width across flats | – | 15.73 | 16 | 16.73–17 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 10.94 kg per 1 000 pieces · Bare steel, before coating and packing.91.4 pieces per kg
