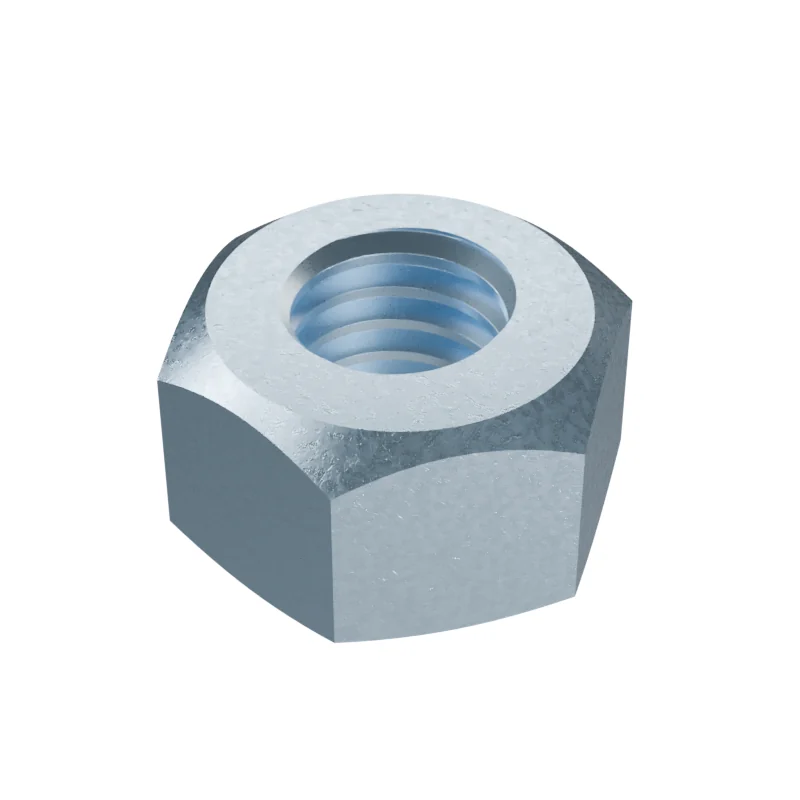

ISO 7042 M6 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M6
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| da | Underhead diameter | – | – | 6.75 | 6.75 |
| da | Clearance diameter | – | 6 | – | 6 |
| dw | Bearing diameter | – | 8.88 | – | 8.9 |
| e | Width across corners | – | 11.05 | – | 11.05 |
| h | Thickness | – | 5.4 | 6 | 5.7–6 |
| mw | Wrenching height | – | 3.92 | – | 3.3 |
| s | Width across flats | – | 9.78 | 10 | 9.78–10 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 2.68 kg per 1 000 pieces · Bare steel, before coating and packing.373 pieces per kg
