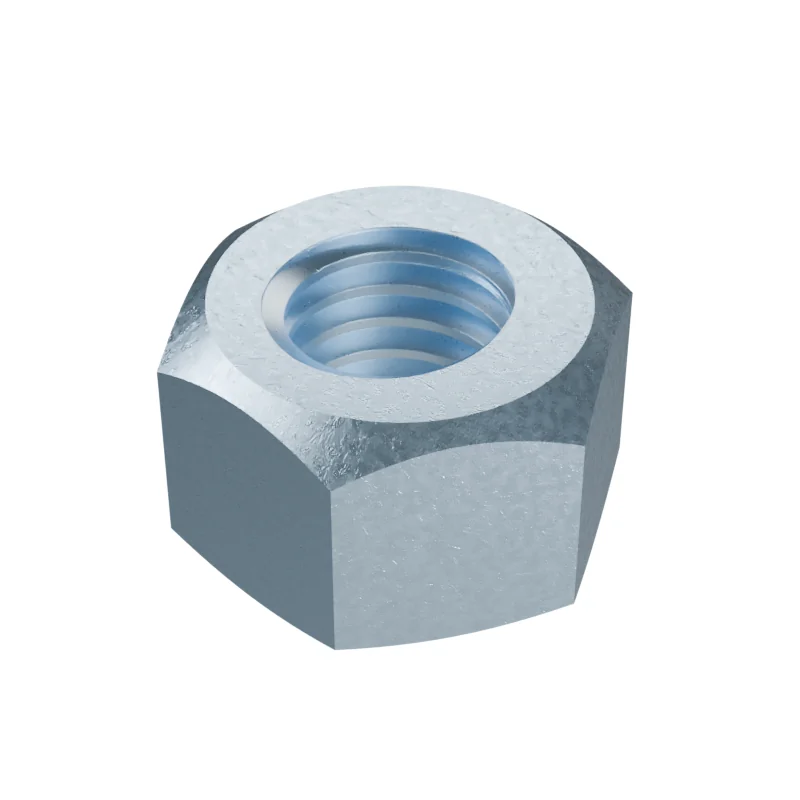

ISO 7042 M5 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M5
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| da | Underhead diameter | – | – | 5.75 | 5.75 |
| da | Clearance diameter | – | 5 | – | 5 |
| dw | Bearing diameter | – | 6.88 | – | 6.9 |
| e | Width across corners | – | 8.79 | – | 8.79 |
| h | Thickness | – | 4.8 | 5.1 | 4.8–5.1 |
| mw | Wrenching height | – | 3.52 | – | 2.75 |
| s | Width across flats | – | 7.78 | 8 | 7.78–8 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 1.49 kg per 1 000 pieces · Bare steel, before coating and packing.672 pieces per kg
