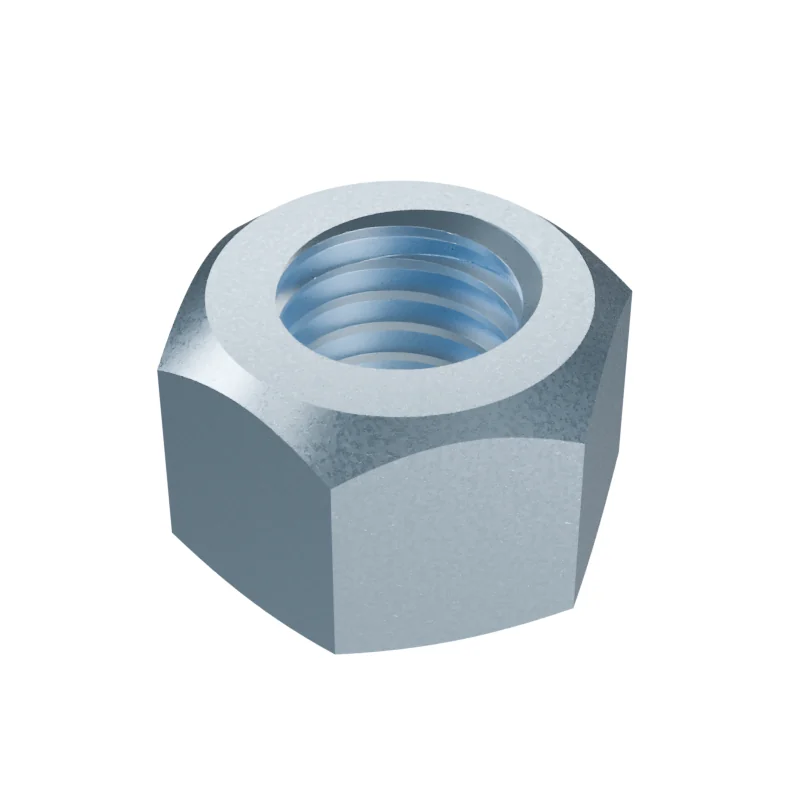

ISO 7042 M12 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M12
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M12 | – | – | M12 |
| P | Thread pitch | 1.75 | – | – | 1.75 |
| da | Underhead diameter | – | – | 13 | 13 |
| da | Clearance diameter | – | 12 | – | 12 |
| dw | Bearing diameter | – | 16.63 | – | 17.4 |
| e | Width across corners | – | 20.03 | – | 21.1 |
| h | Thickness | – | 11.57 | 12 | 11–12 |
| mw | Wrenching height | – | 8.3 | – | 6.6 |
| s | Width across flats | – | 17.73 | 18 | 18.67–19 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 17.13 kg per 1 000 pieces · Bare steel, before coating and packing.58.4 pieces per kg
