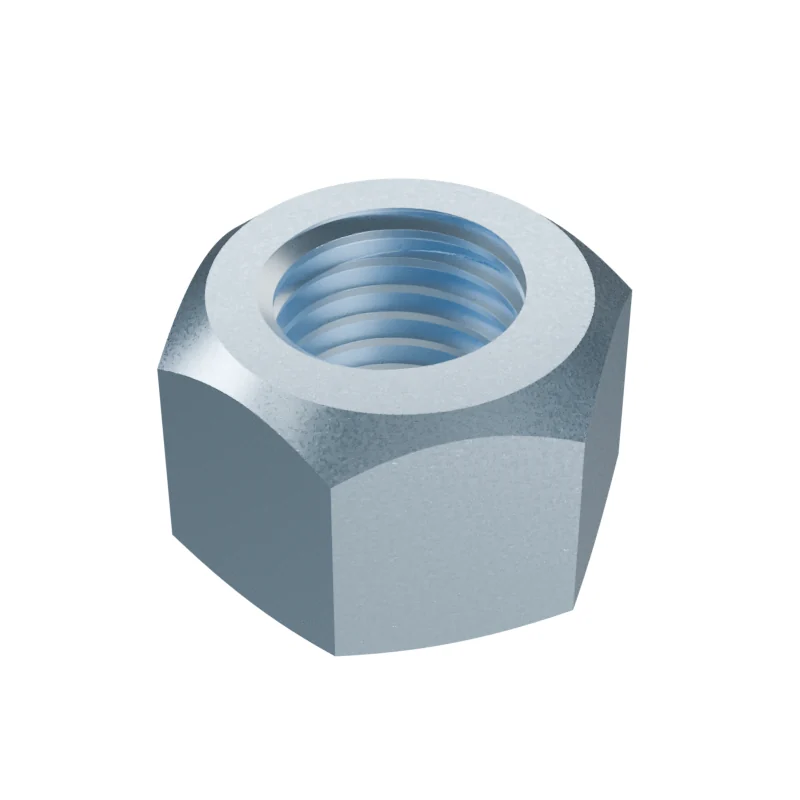

ISO 7042 M16 All-Metal Hexagon Nut
In stock in 13 material, grade and finish combinations.
Dimensions at M16
mm · ISO 7042 · dimensions from 1997 · current edition 2025| Dimension | Nominal | Min | Max | DIN 980 | |
|---|---|---|---|---|---|
| d | Thread size | M16 | – | – | M16 |
| P | Thread pitch | 2 | – | – | 2 |
| da | Underhead diameter | – | – | 17.3 | 17.3 |
| da | Clearance diameter | – | 16 | – | 16 |
| dw | Bearing diameter | – | 22.49 | – | 22.5 |
| e | Width across corners | – | 26.75 | – | 26.75 |
| h | Thickness | – | 15.7 | 16.4 | 14–16 |
| mw | Wrenching height | – | 11.28 | – | 8.8 |
| s | Width across flats | – | 23.67 | 24 | 23.67–24 |
- DIN 980
- Values in bold differ from ISO 7042.
- Approx. weight
- ≈ 40.43 kg per 1 000 pieces · Bare steel, before coating and packing.24.7 pieces per kg
