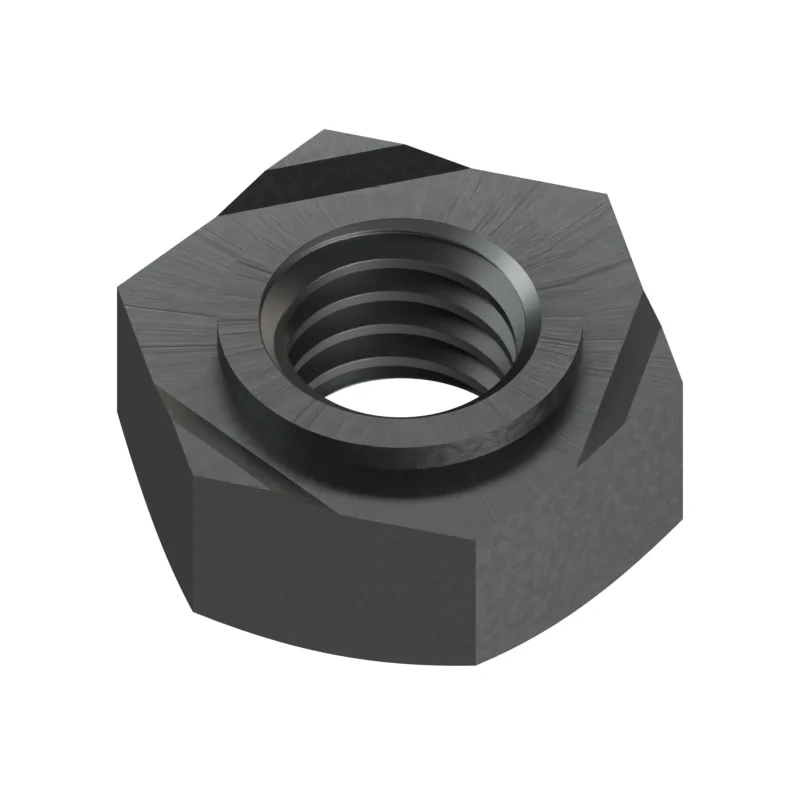

DIN 929 M6 Hexagon Weld Nut
In stock in 2 material, grade and finish combinations.
Dimensions at M6
mm · DIN 929 · dimensions from 1987-09 · current edition 2013-12| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| Thread pitch | 1 | – | – | |
| s | Width across flats | – | – | 11 |
| e | Width across corners | – | 12.02 | – |
| m | Nut height | 5 | – | – |
| b | Weld projection width | 0.9 | – | – |
| d2 | Pilot diameter d2 | 8 | – | – |
| d3 | Countersink diameter d3 | 8 | – | – |
| d4 | Diameter d4 | – | – | 6.3 |
| h1 | Weld projection h1 | – | 0.6 | 0.75 |
| h2 | Weld projection h2 | – | 0.3 | 0.4 |
- Approx. weight
- ≈ 2.50 kg per 1 000 pieces · Bare steel, before coating and packing.400 pieces per kg
