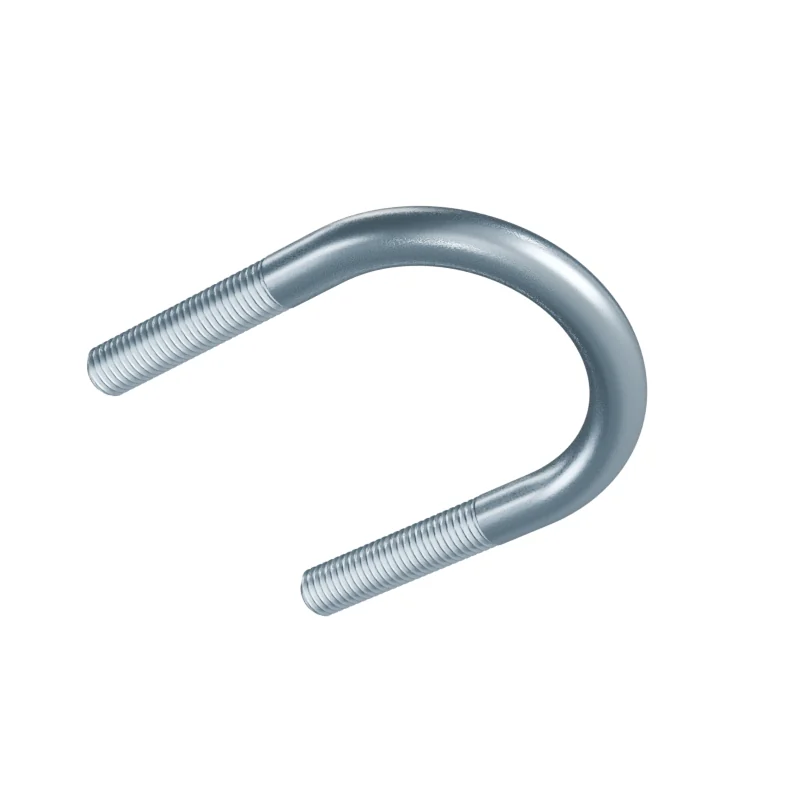

DIN 3570 64 U-Bolt for Pipes
In stock in 7 material, grade and finish combinations.
Dimensions at 64
mm · DIN 3570 · 1968-10 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 64 | – | – |
| d1 | Pipe OD | – | 57 | 60.3 |
| b | Thread length | 50 | – | – |
| d2 | Rod diameter | 12 | – | – |
| d3 | Thread size | M12 | – | – |
| e | Inside width | 76 | – | – |
| h1 | Overall height | 109 | – | – |
- Approx. weight
- ≈ 232.06 kg per 1 000 pieces · Bare steel, before coating and packing.4.3 pieces per kg
