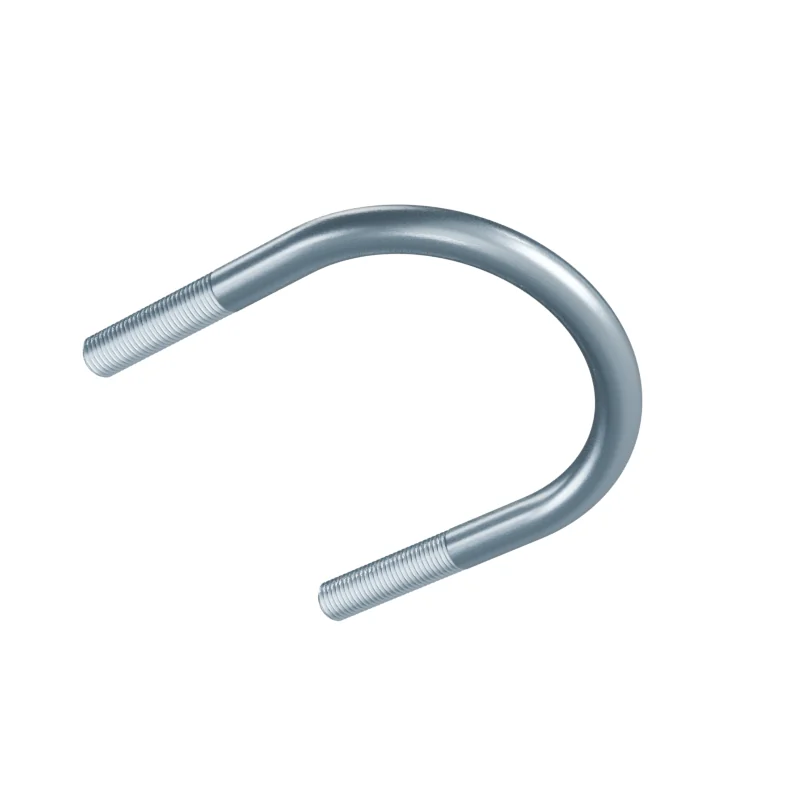

DIN 3570 120 U-Bolt for Pipes
In stock in 7 material, grade and finish combinations.
Dimensions at 120
mm · DIN 3570 · 1968-10 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | 120 | – | – |
| d1 | Pipe OD | – | 108 | 114.3 |
| b | Thread length | 60 | – | – |
| d2 | Rod diameter | 16 | – | – |
| d3 | Thread size | M16 | – | – |
| e | Inside width | 136 | – | – |
| h1 | Overall height | 171 | – | – |
- Approx. weight
- ≈ 662.31 kg per 1 000 pieces · Bare steel, before coating and packing.1.5 pieces per kg
