DIN 976-1 M8 x 160 Threaded Rod
In stock in 16 material, grade and finish combinations.
Dimensions at M8 x 160
mm · DIN 976-1 · current edition 2016-09| Dimension | Nominal | Min | Max | DIN 975 | |
|---|---|---|---|---|---|
| d | Thread size | M8 | – | – | M8 |
| P | Thread pitch | 1.25 | – | – | 1.25 |
| lt | Length | 160 | – | – | 160 |
- DIN 975
- Values in bold differ from DIN 976-1.
- Length
- 160 mm · 159.2–160.8 mm to DIN 976-1
- Approx. weight
- ≈ 51.10 kg per 1 000 pieces · Bare steel, before coating and packing.19.6 pieces per kg
Other lengths in M8

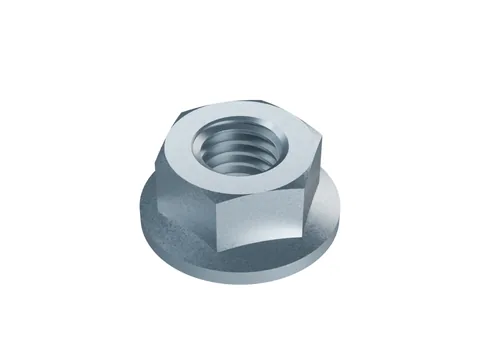

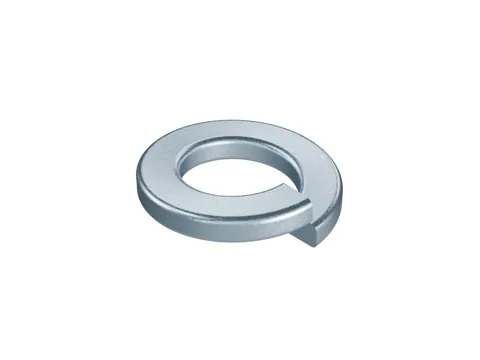

All 69 sizes of Threaded StudParts that mate with M8
StandardsDIN 976-1DIN 975GB/T 15389All sizes
