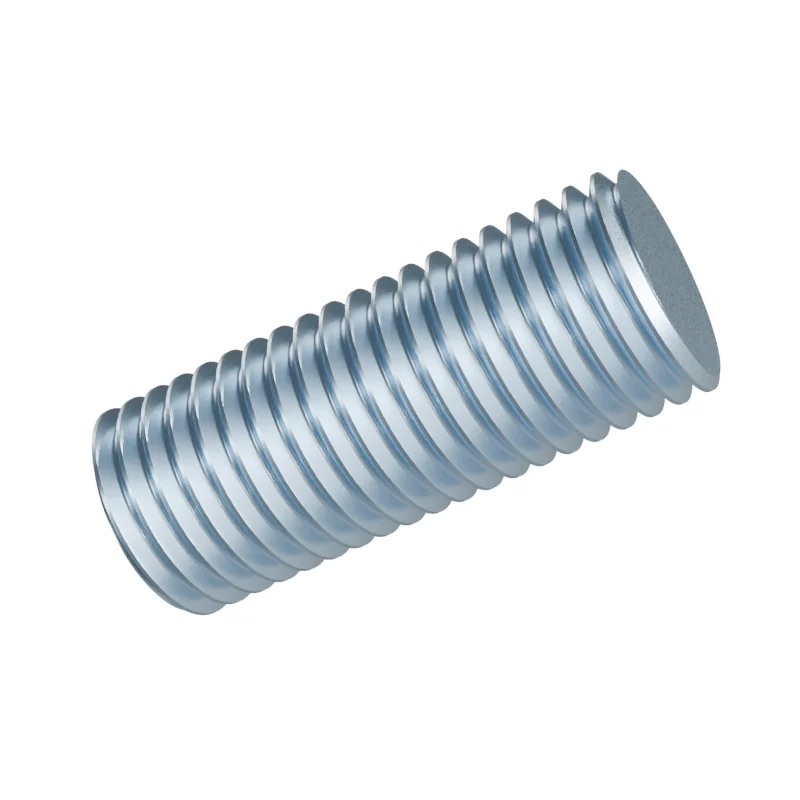

DIN 976-1 M24×60 Threaded Rod10 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 976-1 · 2016-09
- Thread
- M24 · pitch 3 mm
- Length under head
- 60 mm
- Weight
- 180.00 kg per 1 000 pieces · From the standard's published table5.6 pieces per kg
Supplied to DIN 976-1 M24×60 — the figures shown here match DIN 975. All 2 record the same figures in this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M24×60
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
Every standard listed here records the same figures at M24×60. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8.8 | Zinc Plated | — | |
| Carbon Steel | 8.8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8.8 | Dacromet | — | |
| Carbon Steel | 8.8 | Blackened | — | |
| Carbon Steel | 8.8 | Phosphate | — | |
| Carbon Steel | 8.8 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M24×60
| Dimension | Value |
|---|---|
| P | 3 mm |
| Weight | 180.00 kg / 1000 pcs |
| Pieces per kg | 5.6 |
Plating adds thickness — state the finish on the order.
Other lengths in M24
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M24×50 | 150.00 | open |
| M24×60 | 180.00 | this page |
| M24×80 | 240.00 | open |
| M24×100 | 300.00 | open |
| M24×120 | 360.00 | open |
