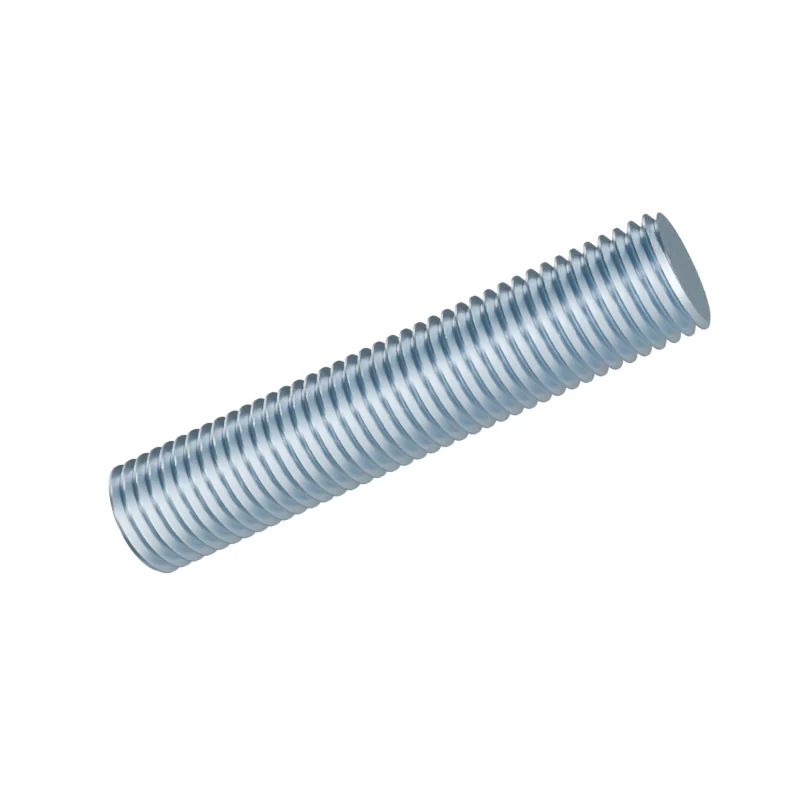

DIN 976-1 M24 x 120 Threaded Rod
In stock in 10 material, grade and finish combinations.
Dimensions at M24 x 120
mm · DIN 976-1 · current edition 2016-09| Dimension | Nominal | Min | Max | DIN 975 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| P | Thread pitch | 3 | – | – | 3 |
| lt | Length | 120 | – | – | 120 |
- DIN 975
- Values in bold differ from DIN 976-1.
- Length
- 120 mm · 119.3–120.7 mm to DIN 976-1
- Approx. weight
- ≈ 360.00 kg per 1 000 pieces · Bare steel, before coating and packing.2.8 pieces per kg
