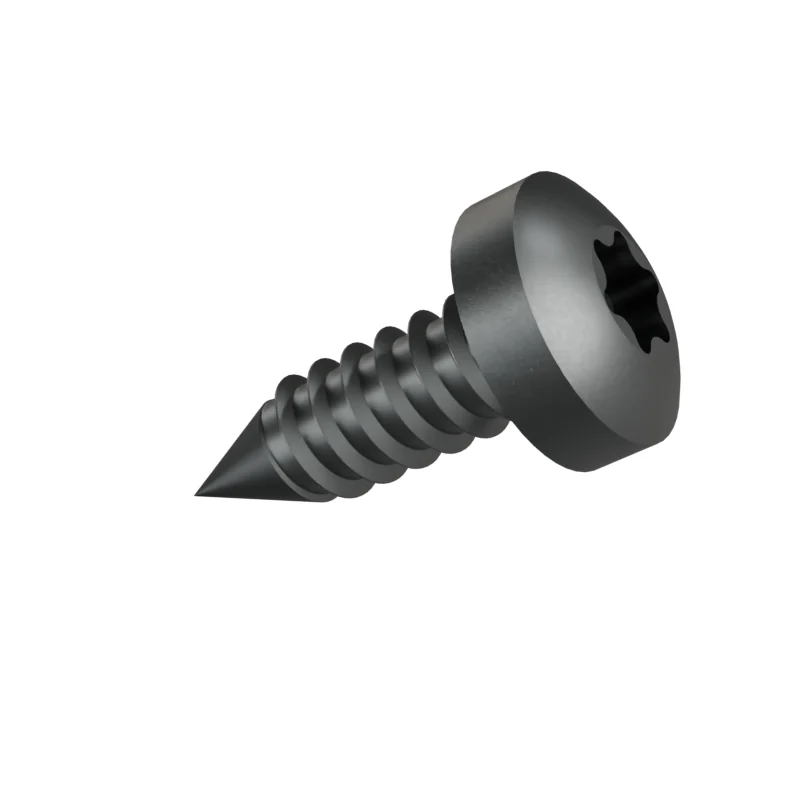

ISO 14585 ST6.3 x 19 6-Lobe Pan Tapping Screw
In stock in 5 material, grade and finish combinations.
Dimensions at ST6.3 x 19
mm · ISO 14585 · 2011 edition| Dimension | Nominal | Min | Max | GB/T 2670.1 | |
|---|---|---|---|---|---|
| d | Thread size | ST6.3 | – | – | ST6.3 |
| P | Thread pitch | 1.8 | – | – | 1.8 |
| l | Length | 19 | – | – | 19 |
| a | Thread runout | – | – | 1.8 | 1.8 |
| da | Underhead diameter | – | – | 7.3 | 7.3 |
| dk | Head diameter | 12 | 11.57 | – | 11.57 |
| k | Head height | 4.6 | 4.3 | – | 4.3 |
| r | Radius | – | 0.25 | – | 0.25 |
| rf | Head radius (ref) | 10 | – | – | 10 |
| Socket number | 30 | – | – | 30 | |
| A | Hexalobular socket A (ref) | 5.6 | – | – | 5.6 |
| t | Socket depth | – | 2.02 | 2.42 | 2.02–2.42 |
| y | Point length (ref.) (C) | 6 | – | – | 6 |
| y | Point length (ref.) (F) | 3.6 | – | – | 3.6 |
| y | Point length (ref.) (R) | 5 | – | – | 5 |
- GB/T 2670.1
- Values in bold differ from ISO 14585.
- Length under head
- 19 mm · 18.2–19.8 mm (Type C / R), 18.2–19 mm (Type F) to ISO 14585 product grade A
- Approx. weight
- ≈ 6.20 kg per 1 000 pieces · Bare steel, before coating and packing.161 pieces per kg
- Also named
- GB/T 2670.1
