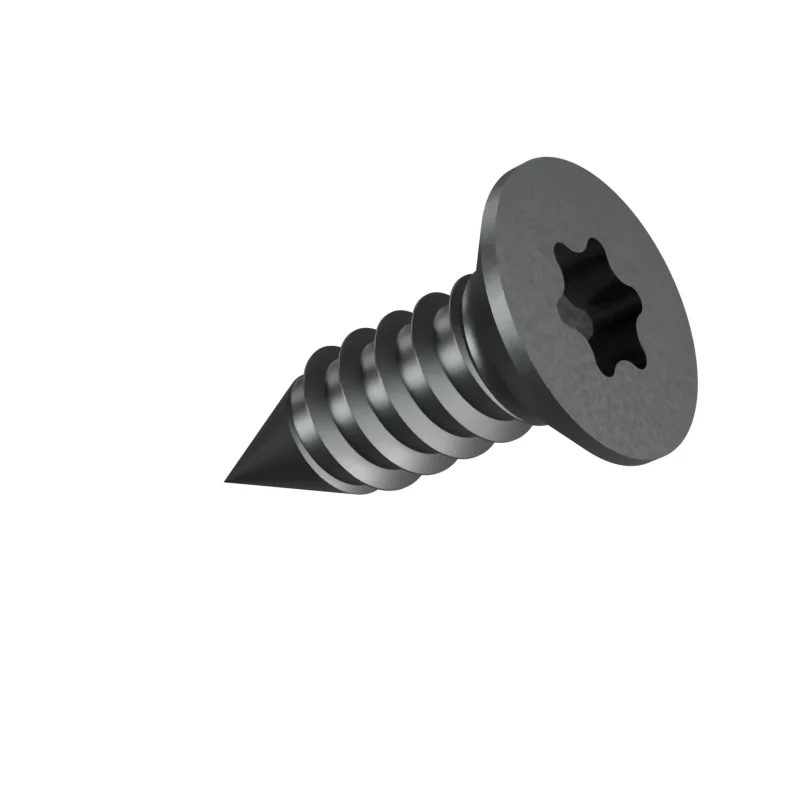

ISO 14586 ST6.3 x 19 6-Lobe CSK Tapping Screw
In stock in 5 material, grade and finish combinations.
Dimensions at ST6.3 x 19
mm · ISO 14586 · 2011 edition| Dimension | Nominal | Min | Max | GB/T 2670.2 | |
|---|---|---|---|---|---|
| d | Thread size | ST6.3 | – | – | ST6.3 |
| P | Thread pitch | 1.8 | – | – | 1.8 |
| l | Length | 19 | – | – | 19 |
| a | Thread runout | – | – | 1.8 | 1.8 |
| dk | Theoretical head diameter | 11.3 | 10.9 | 12.6 | 10.9–12.6 |
| k | Head height | 3.15 | – | – | 3.15 |
| r | Radius | – | – | 2.4 | 2.4 |
| Socket number | 30 | – | – | 30 | |
| A | Hexalobular socket A (ref) | 5.6 | – | – | 5.6 |
| t | Socket depth | – | 2.02 | 2.42 | 2.02–2.42 |
| y | Point length (ref.) (C) | 6 | – | – | 6 |
| y | Point length (ref.) (F) | 3.6 | – | – | 3.6 |
| y | Point length (ref.) (R) | 5 | – | – | 5 |
- GB/T 2670.2
- Values in bold differ from ISO 14586.
- Length incl. head
- 19 mm · 18.2–19.8 mm (Type C / R), 18.2–19 mm (Type F) to ISO 14586 product grade A
- Approx. weight
- ≈ 4.12 kg per 1 000 pieces · Bare steel, before coating and packing.243 pieces per kg
- Also named
- GB/T 2670.2
Other lengths in ST6.3
All 30 sizes of Hexalobular Socket Countersunk Head Tapping ScrewNearby sizesST5.5 x 38
StandardsISO 14586GB/T 2670.2All sizes
