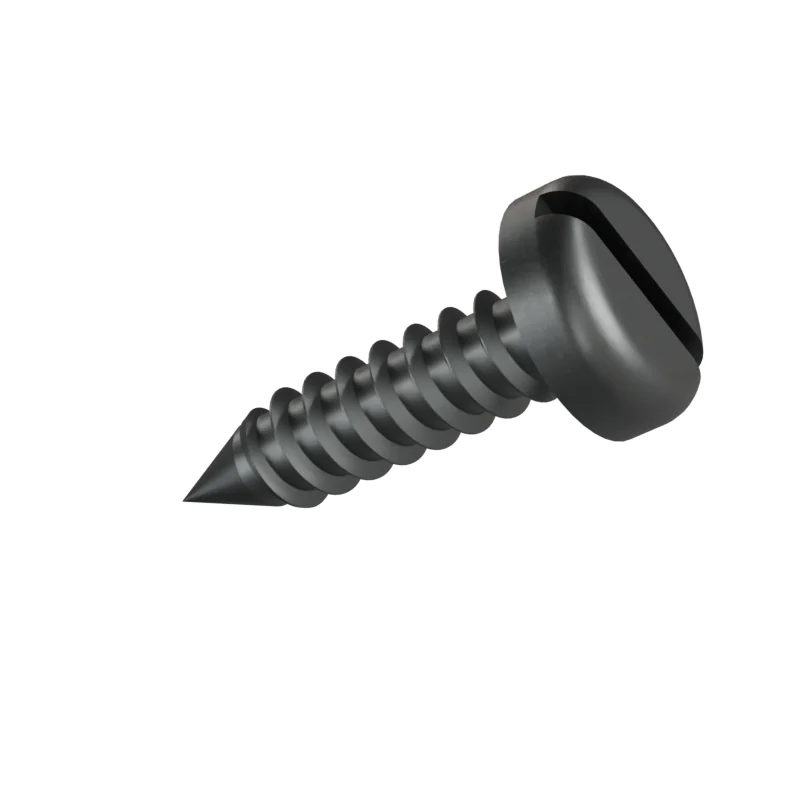

ISO 1481 ST4.8 x 19 Slotted Pan Tapping Screw
In stock in 5 material, grade and finish combinations.
Dimensions at ST4.8 x 19
mm · ISO 1481 · 2011 edition| Dimension | Nominal | Min | Max | GB/T 5282 | |
|---|---|---|---|---|---|
| d | Thread size | ST4.8 | – | – | ST4.8 |
| P | Thread pitch | 1.6 | – | – | 1.6 |
| l | Length | 19 | – | – | 19 |
| a | Thread runout | – | – | 1.6 | 1.6 |
| dk | Head diameter | 9.5 | 9.1 | – | 9.1 |
| k | Head height | 3 | 2.7 | – | 2.7 |
| n | Slot width (nominal) | 1.2 | – | – | 1.2 |
| n | Slot width | – | 1.26 | 1.51 | 1.26–1.51 |
| t | Slot depth | – | 1.2 | – | 1.2 |
| r | Radius | – | 0.2 | – | 0.2 |
| y | Point length (ref.) (C) | 4.3 | – | – | 4.3 |
| y | Point length (ref.) (F) | 3.2 | – | – | 3.2 |
| y | Point length (ref.) (R) | 3.6 | – | – | 3.6 |
- GB/T 5282
- Values in bold differ from ISO 1481.
- Length under head
- 19 mm · 18.2–19.8 mm (Type C / R), 18.2–19 mm (Type F) to ISO 1481 product grade A
- Approx. weight
- ≈ 2.93 kg per 1 000 pieces · Bare steel, before coating and packing.341 pieces per kg
- Also named
- GB/T 5282
