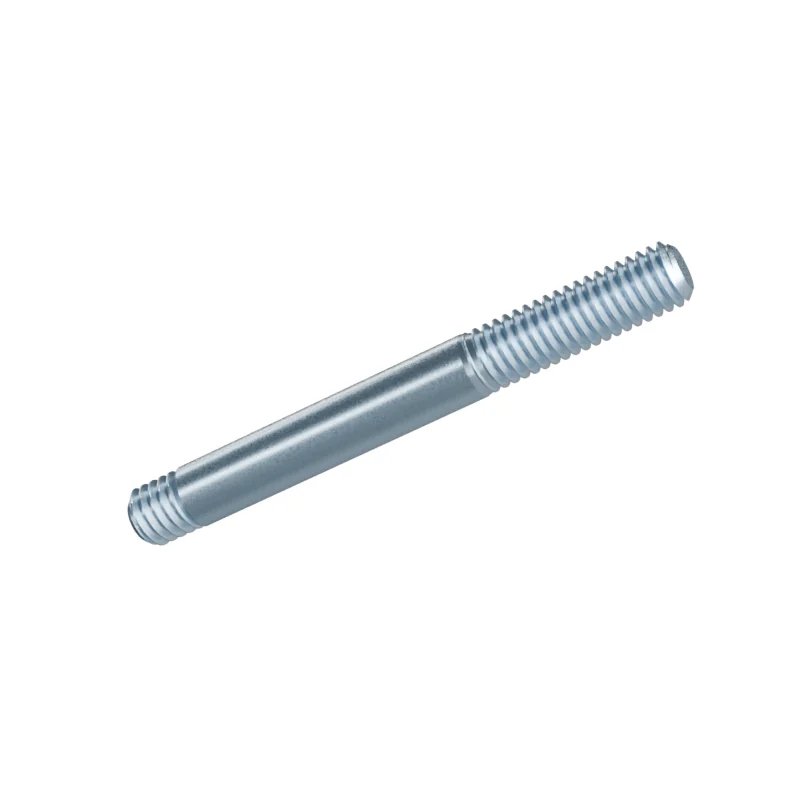

DIN 938 M6 x 50 Metal End 1d Double End Stud
In stock in 9 material, grade and finish combinations.
Dimensions at M6 x 50
mm · DIN 938 · dimensions from 2012-12 · current edition 2025-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| l | Length | 50 | – | – |
| bm | Metal end thread length | 6 | – | – |
| b | Thread length | 18 | – | – |
| ds | Stud shank diameter | – | 5.82 | 6 |
| x1 | Thread runout x1 | 2.5 | – | – |
| x2 | Thread runout x2 | 1.25 | – | – |
- Length excl. metal end
- 50 mm · 49.5–50.5 mm to DIN 938
- Approx. weight
- ≈ 11.20 kg per 1 000 pieces · Bare steel, before coating and packing.89.3 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
