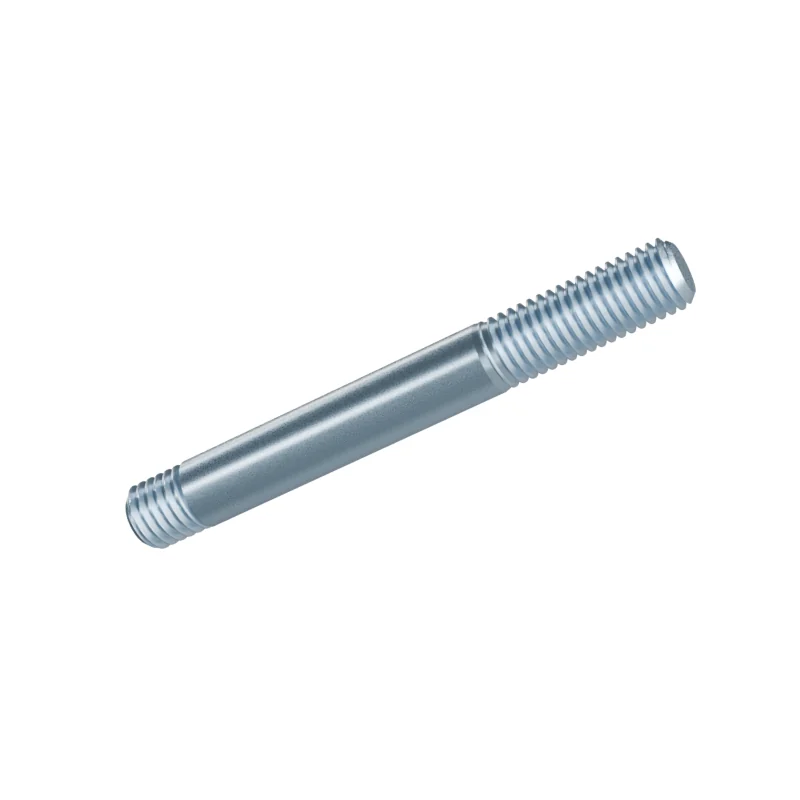

DIN 938 M12 x 90 Metal End 1d Double End Stud
In stock in 10 material, grade and finish combinations.
Dimensions at M12 x 90
mm · DIN 938 · dimensions from 2012-12 · current edition 2025-08| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| l | Length | 90 | – | – |
| bm | Metal end thread length | 12 | – | – |
| b | Thread length | 30 | – | – |
| ds | Stud shank diameter | – | 11.73 | 12 |
| x1 | Thread runout x1 | 4.3 | – | – |
| x2 | Thread runout x2 | 2.2 | – | – |
- Length excl. metal end
- 90 mm · 89.3–90.7 mm to DIN 938
- Approx. weight
- ≈ 83.20 kg per 1 000 pieces · Bare steel, before coating and packing.12.0 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
