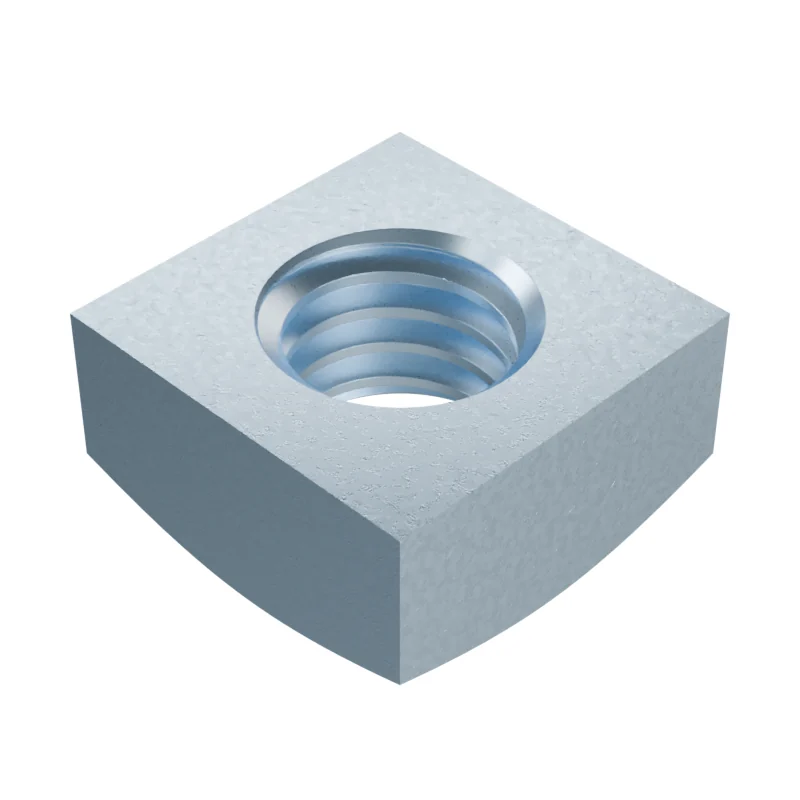

DIN 557 M6 Square Nut
In stock in 10 material, grade and finish combinations.
Dimensions at M6
mm · DIN 557 · current edition 2026-02| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| dw | Bearing diameter | – | 8.7 | – |
| e | Width across corners | – | 12.53 | 14.1 |
| m | Nut height | 5 | 4.52 | – |
| Wrenching height | – | 3.2 | – | |
| s | Width across flats | – | 9.64 | 10 |
- Approx. weight
- ≈ 2.69 kg per 1 000 pieces · Bare steel, before coating and packing.371 pieces per kg
