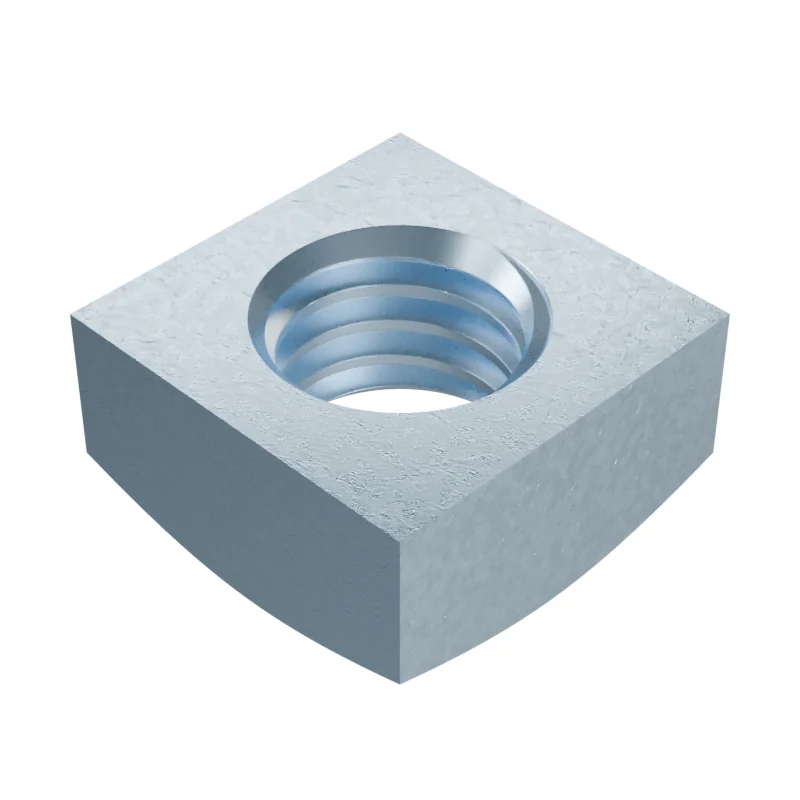

DIN 557 M5 Square Nut10 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 557 · 1994
- Thread
- M5 · pitch 0.8 mm
- Drive
- 8 mm spanner · e 9.93 mm
- Weight
- 1.26 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering791 pieces per kg
Order M5
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 6 | Zinc Plated | — | |
| Carbon Steel | 6 | Plain | — | |
| Carbon Steel | 8 | Zinc Plated | — | |
| Carbon Steel | 8 | Plain | — | |
| Carbon Steel | 10 | Zinc Plated | — | |
| Carbon Steel | 10 | Plain | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M5
| Dimension | Value |
|---|---|
| P | 0.8 mm |
| s | 8 mm |
| e | 9.93 mm |
| m | 4 mm |
| Weight | 1.26 kg / 1000 pcs |
| Pieces per kg | 791 |
Plating adds thickness — state the finish on the order.
