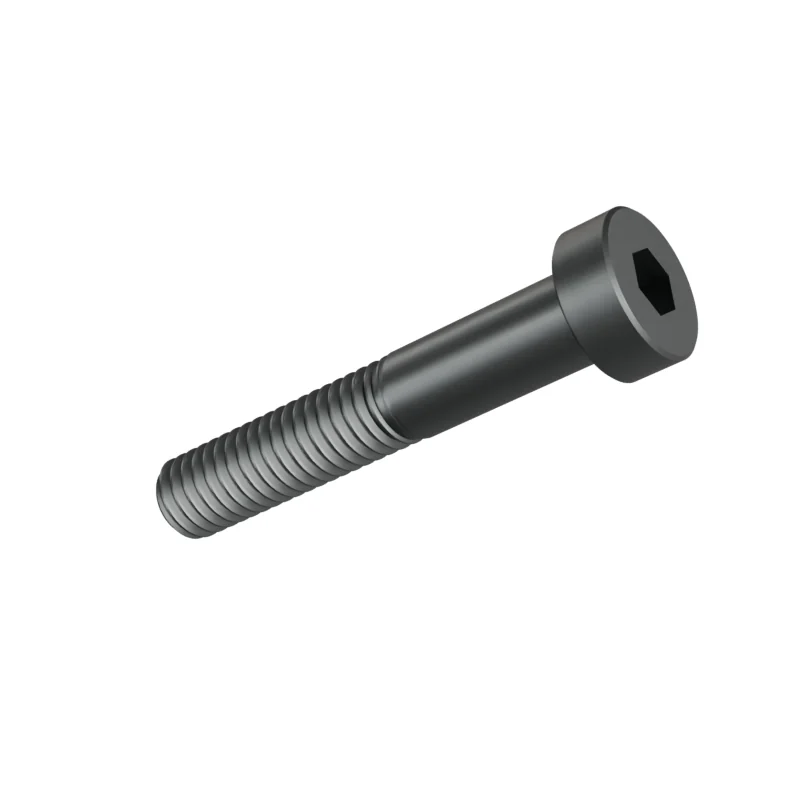

DIN 7984 M6 x 35 Low Head Socket Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M6 x 35
mm · DIN 7984 · dimensions from 2009-06 · current edition 2022-03| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| Length | 35 | – | – | |
| s | Hex socket size | 4 | – | – |
| dk | Head diameter | 10 | – | – |
| k | Head height | 4 | – | – |
- Length under head
- 35 mm
- Approx. weight
- ≈ 9.02 kg per 1 000 pieces · Bare steel, before coating and packing.111 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
