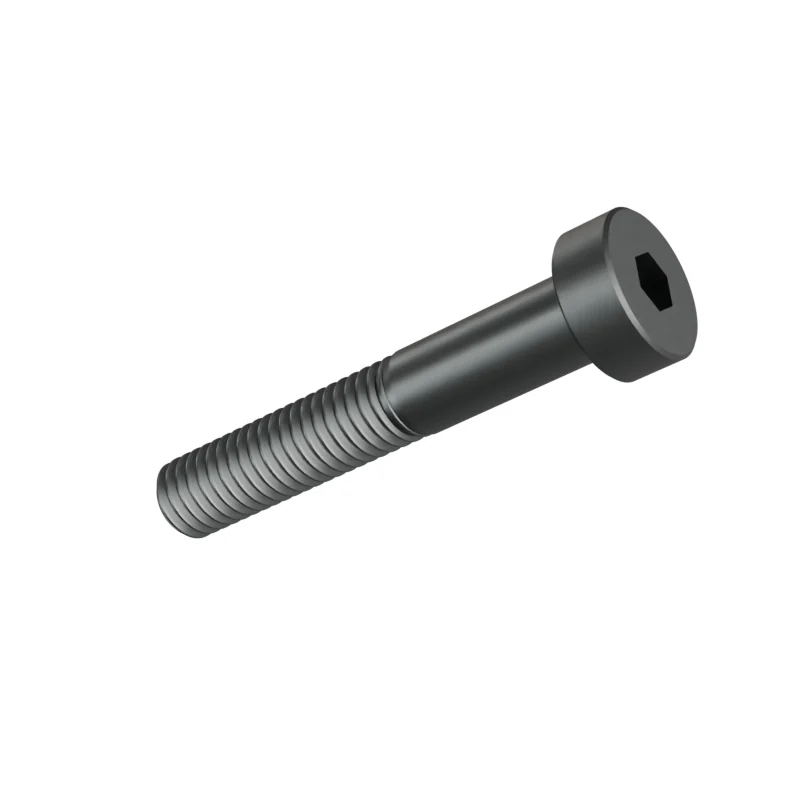

DIN 7984 M5 x 30 Low Head Socket Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M5 x 30
mm · DIN 7984 · dimensions from 2009-06 · current edition 2022-03| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M5 | – | – |
| P | Thread pitch | 0.8 | – | – |
| Length | 30 | – | – | |
| s | Hex socket size | 3 | – | – |
| dk | Head diameter | 8.5 | – | – |
| k | Head height | 3.5 | – | – |
- Length under head
- 30 mm
- Approx. weight
- ≈ 5.45 kg per 1 000 pieces · Bare steel, before coating and packing.184 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
