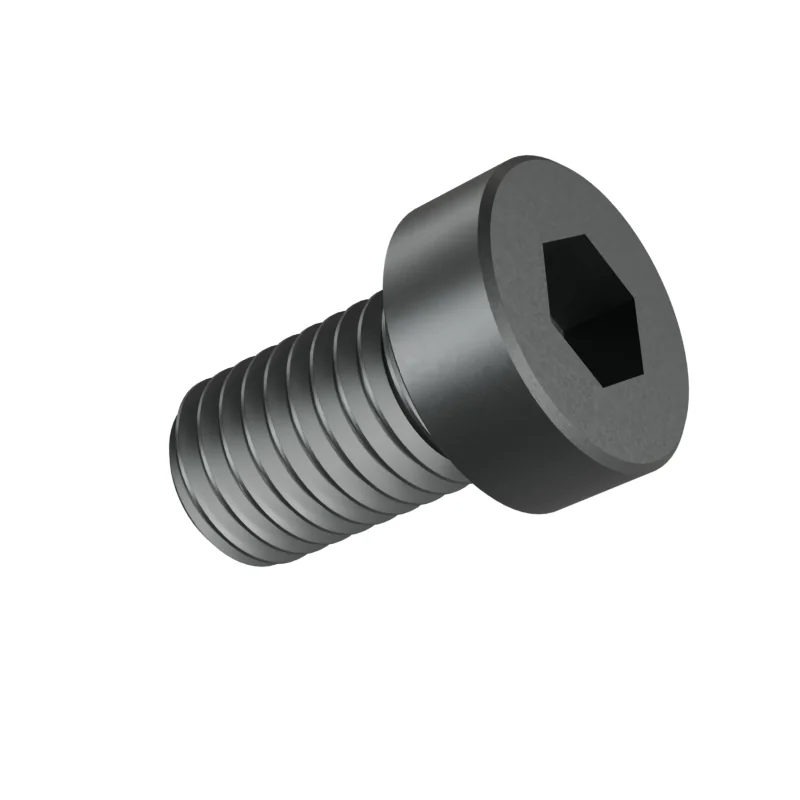

DIN 7984 M12 x 20 Low Head Socket Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M12 x 20
mm · DIN 7984 · dimensions from 2009-06 · current edition 2022-03| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| P | Thread pitch | 1.75 | – | – |
| Length | 20 | – | – | |
| s | Hex socket size | 8 | – | – |
| dk | Head diameter | 18 | – | – |
| k | Head height | 7 | – | – |
- Length under head
- 20 mm
- Approx. weight
- ≈ 26.28 kg per 1 000 pieces · Bare steel, before coating and packing.38.0 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine13 mm
Clearance hole · medium13.5 mm
Clearance hole · coarse14.5 mm
Tap drill10.2 mm
