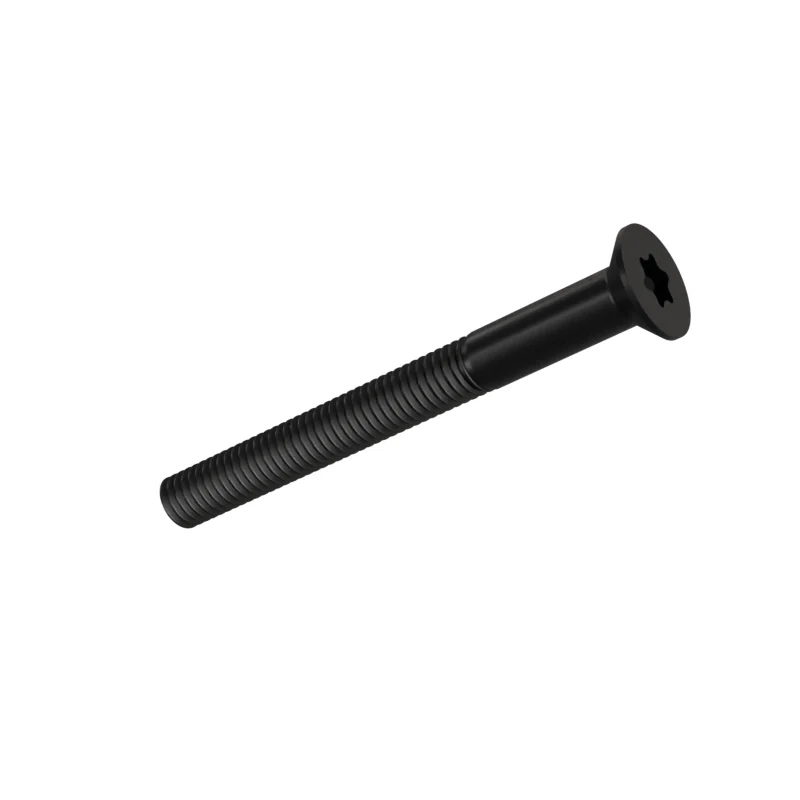

ISO 14581 M6 x 60 Countersunk Socket Screw
In stock in 7 material, grade and finish combinations.
Dimensions at M6 x 60
mm · ISO 14581 · dimensions from 2013 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| P | Thread pitch | 1 | – | – |
| l | Length | 60 | – | – |
| dk | Theoretical head diameter | 11.3 | 10.87 | 12.6 |
| k | Head height | 3.3 | – | – |
| Recess number | 30 | – | – | |
| A | Hexalobular socket A (ref) | 5.6 | – | – |
| t | Socket depth | – | 1.39 | 1.78 |
- Length incl. head
- 60 mm · 59.05–60.95 mm to ISO 14581 product grade A
- Approx. weight
- ≈ 11.58 kg per 1 000 pieces · Bare steel, before coating and packing.86.4 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
