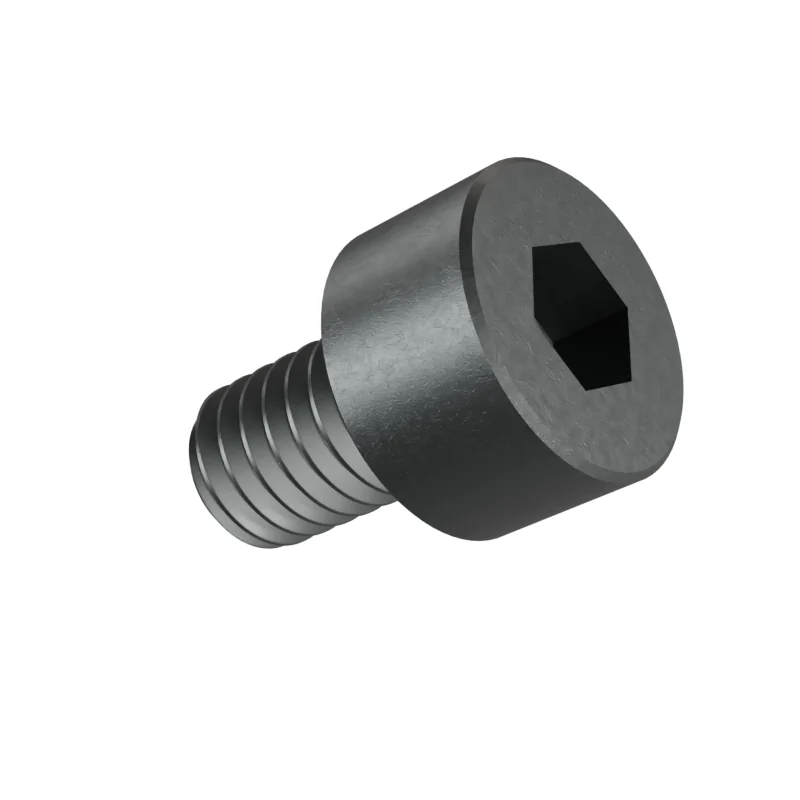

DIN 912 M4 x 6 Socket Head Cap Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M4 x 6
mm · DIN 912 · 1983-12 edition · withdrawn| Dimension | Nominal | Min | Max | ISO 4762 | |
|---|---|---|---|---|---|
| d | Thread size | M4 | – | – | M4 |
| P | Thread pitch | 0.7 | – | – | 0.7 |
| l | Length | 6 | – | – | 6 |
| s | Hex socket size | 3 | – | – | 3 |
| dk | Head diameter | 7 | – | – | 7 |
| k | Head height | 4 | – | – | 4 |
| b | Thread length | 20 | – | – | 20 |
- ISO 4762
- Values in bold differ from DIN 912.
- Length under head
- 6 mm · 5.76–6.24 mm to DIN 912 product grade A
- Approx. weight
- ≈ 1.48 kg per 1 000 pieces · Bare steel, before coating and packing.676 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine4.3 mm
Clearance hole · medium4.5 mm
Clearance hole · coarse4.8 mm
Tap drill3.3 mm
