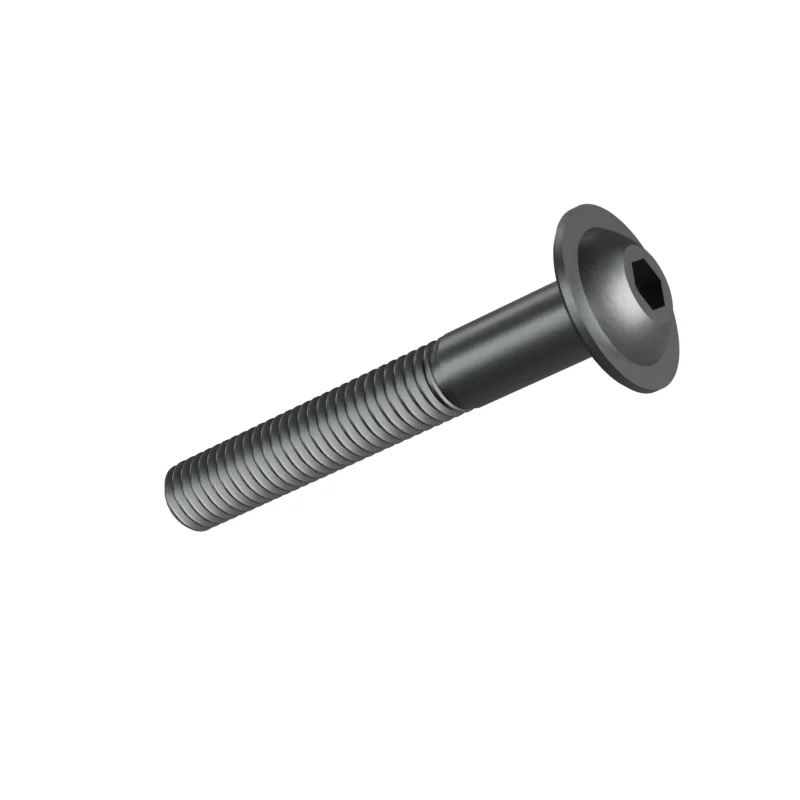

ISO 7380-2 M5 x 35 Button Head Socket Screw
In stock in 12 material, grade and finish combinations.
Dimensions at M5 x 35
mm · ISO 7380-2 · dimensions from 2011 · current edition 2022| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M5 | – | – |
| P | Thread pitch | 0.8 | – | – |
| l | Length | 35 | – | – |
| s | Hex socket size | 3 | – | – |
| dk | Head diameter | 8.8 | 8.4 | – |
| k | Head height | 2.75 | 2.5 | – |
| b | Thread length | 22 | – | – |
| dc | Flange diameter | 11.8 | – | – |
| dc | Bearing diameter | – | 11.1 | – |
| e | Socket across corners | – | 3.443 | – |
| t | Socket depth | – | 1.56 | 2.12 |
- Length under head
- 35 mm · 34.5–35.5 mm to ISO 7380-2
- Approx. weight
- ≈ 5.33 kg per 1 000 pieces · Bare steel, before coating and packing.187 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
