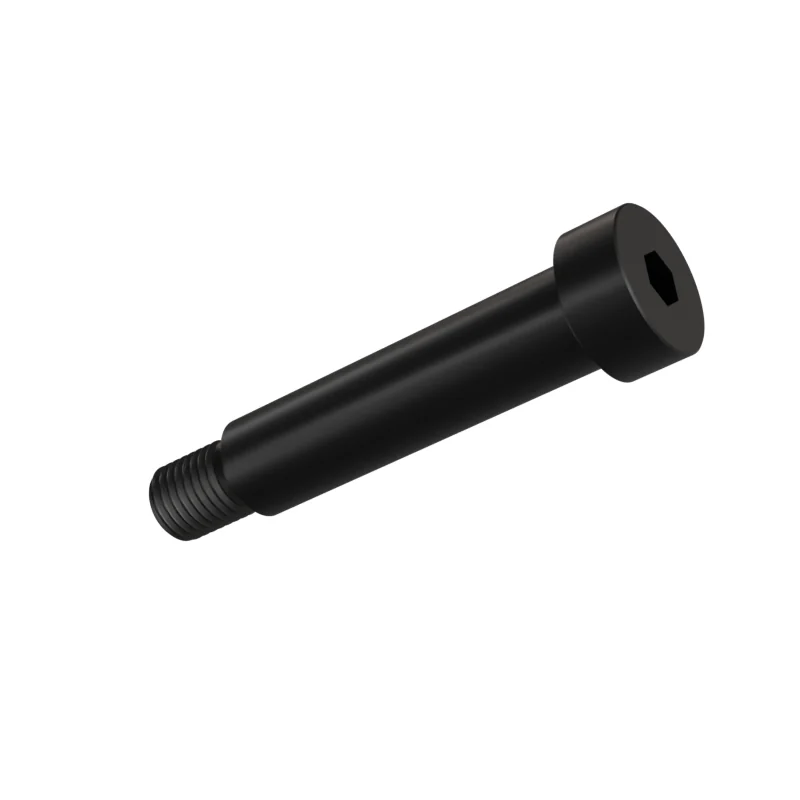

ISO 7379 M20×100 Socket Head Shoulder Screw2 combinations of material, property class and finish supplied in this size.
- Standard
- ISO 7379 · 1983
- Thread
- M20 · pitch 2.5 mm
- Length under head
- 100 mm
- Clearance / tap drill
- 21 / 22 / 24 mm · 17.5 mm
- Weight
- 229.35 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering4.4 pieces per kg
Order M20×100
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Alloy Steel | 12.9 | Blackened | — | |
| Alloy Steel | 12.9 | Plain | — |
Dimensions at M20×100
| Dimension | Value |
|---|---|
| P | 2.5 mm |
| Weight | 229.35 kg / 1000 pcs |
| Pieces per kg | 4.4 |
Plating adds thickness — state the finish on the order.
Holes for this thread
ISO 273 · ISO 2306| Hole | Diameter |
|---|---|
| Clearance hole | 21 / 22 / 24 mm |
| Tap drill | 17.5 mm |
Other lengths in M20
All sizes →| Size | kg per 1 000 pieces | |
|---|---|---|
| M20×65 | 149.08 | open |
| M20×70 | 160.55 | open |
| M20×80 | 183.48 | open |
| M20×90 | 206.42 | open |
| M20×100 | 229.35 | this page |
