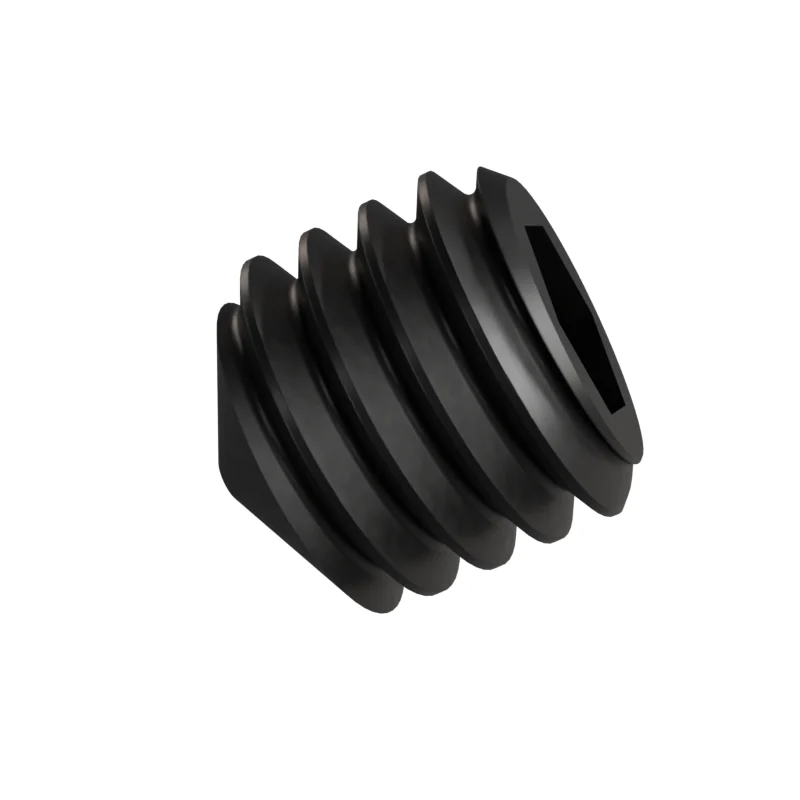

ISO 4027 M6 x 6 Cone Point Socket Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M6 x 6
mm · ISO 4027 · dimensions from 2003 · current edition 2026| Dimension | Nominal | Min | Max | DIN 914 | |
|---|---|---|---|---|---|
| d | Thread size | M6 | – | – | M6 |
| P | Thread pitch | 1 | – | – | 1 |
| l | Length | 6 | – | – | 6 |
| s | Hex socket size | 3 | 3.02 | 3.08 | 3 |
| dt | Point diameter | – | – | 1.5 | — |
| e | Socket across corners | – | 3.443 | – | — |
| t | Socket depth, short length | – | 2 | – | — |
| t | Socket depth, long length | – | 3.5 | – | — |
- DIN 914
- Values in bold differ from ISO 4027.
- Length
- 6 mm · 5.76–6.24 mm to ISO 4027 product grade A
- Approx. weight
- ≈ 0.69 kg per 1 000 pieces · Bare steel, before coating and packing.1449 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine6.4 mm
Clearance hole · medium6.6 mm
Clearance hole · coarse7 mm
Tap drill5 mm
