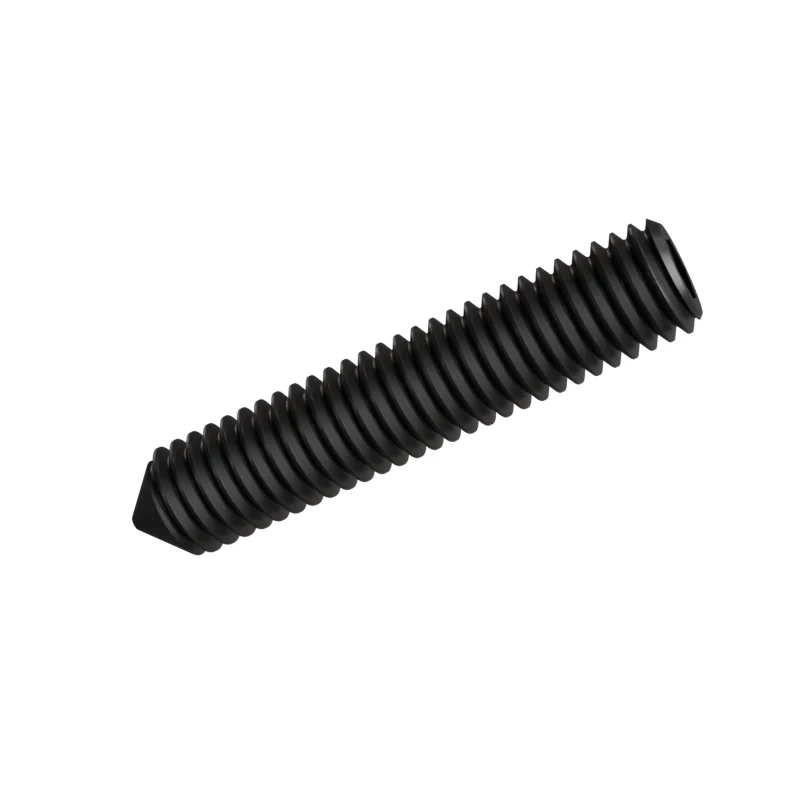

ISO 4027 M5 x 25 Cone Point Socket Set Screw
In stock in 6 material, grade and finish combinations.
Dimensions at M5 x 25
mm · ISO 4027 · dimensions from 2003 · current edition 2026| Dimension | Nominal | Min | Max | DIN 914 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| l | Length | 25 | – | – | 25 |
| s | Hex socket size | 2.5 | 2.52 | 2.58 | 2.5 |
| dt | Point diameter | – | – | 1.25 | — |
| e | Socket across corners | – | 2.873 | – | — |
| t | Socket depth, short length | – | 2 | – | — |
| t | Socket depth, long length | – | 3 | – | — |
- DIN 914
- Values in bold differ from ISO 4027.
- Length
- 25 mm · 24.58–25.42 mm to ISO 4027 product grade A
- Approx. weight
- ≈ 2.77 kg per 1 000 pieces · Bare steel, before coating and packing.361 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
