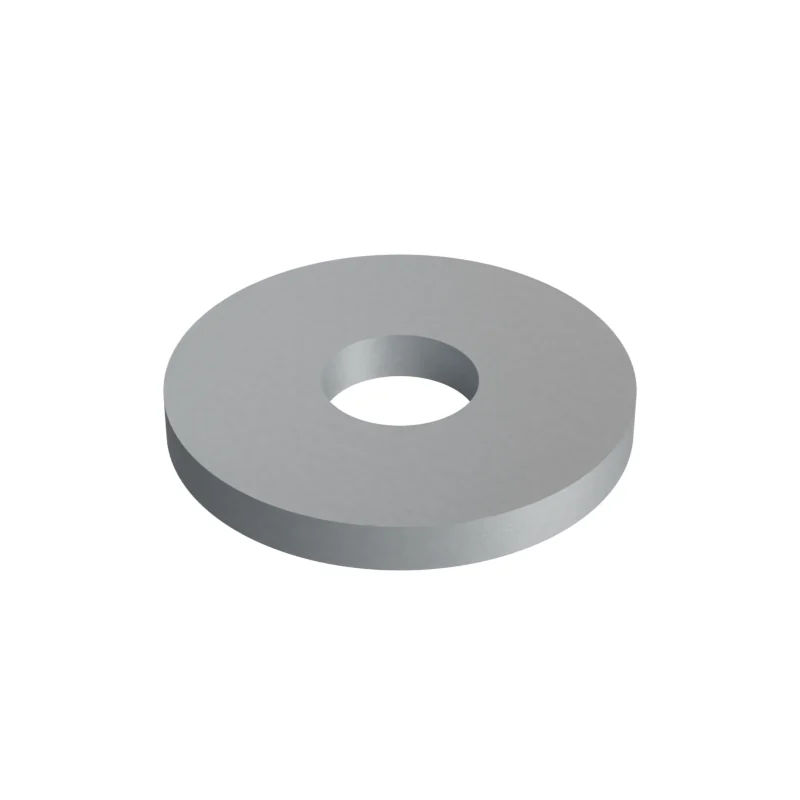

ISO 7094 M8 Extra Large Series Plain Washer
In stock in 3 material, grade and finish combinations.
Dimensions at M8
mm · ISO 7094 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M8 | – | – |
| d1 | Inner diameter | 9 | – | 9.36 |
| d2 | Outer diameter | 28 | 26.7 | – |
| h | Washer thickness | 3 | 2.4 | 3.6 |
- Approx. weight
- ≈ 13.00 kg per 1 000 pieces · Bare steel, before coating and packing.76.9 pieces per kg
