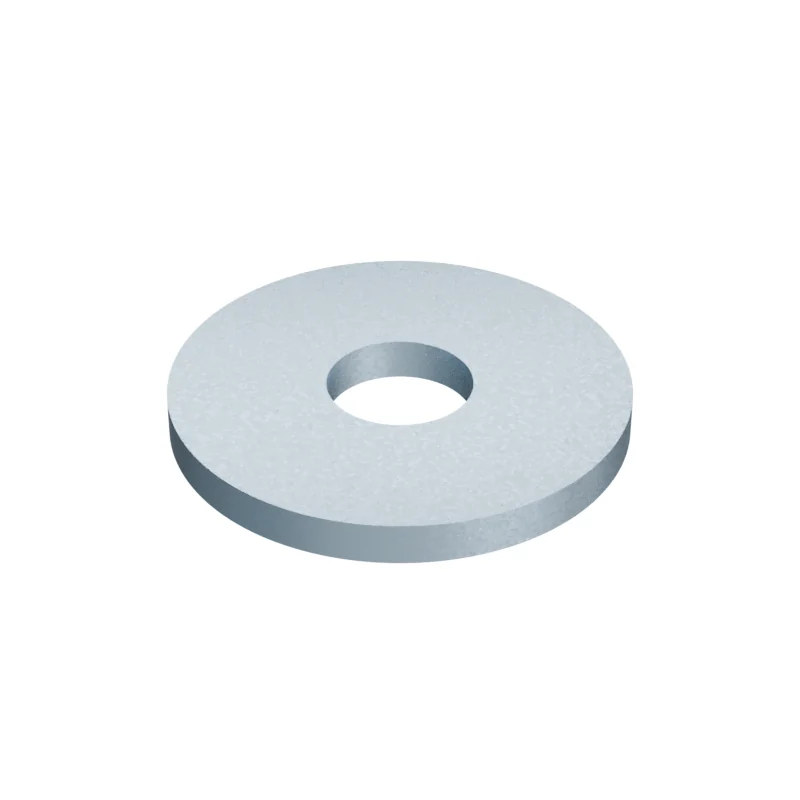

ISO 7094 M6 Extra Large Series Plain Washer
In stock in 2 material, grade and finish combinations.
Dimensions at M6
mm · ISO 7094 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| d1 | Inner diameter | 6.6 | – | 6.96 |
| d2 | Outer diameter | 22 | 20.7 | – |
| h | Washer thickness | 2 | 1.7 | 2.3 |
- Approx. weight
- ≈ 5.43 kg per 1 000 pieces · Bare steel, before coating and packing.184 pieces per kg
