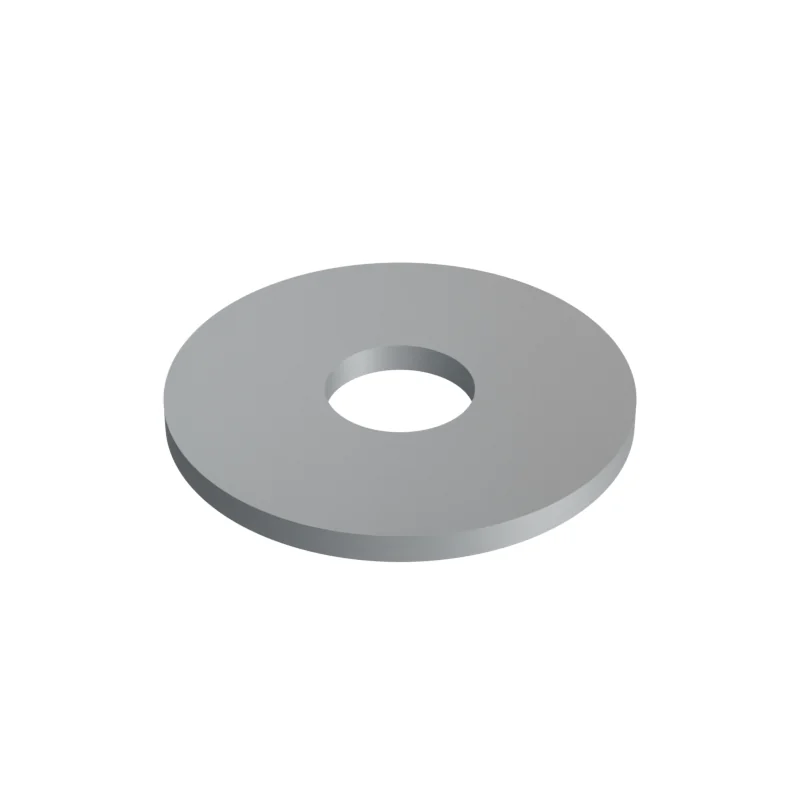

ISO 7094 M36 Extra Large Series Plain Washer
In stock in 3 material, grade and finish combinations.
Dimensions at M36
mm · ISO 7094 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M36 | – | – |
| d1 | Inner diameter | 39 | – | 40 |
| d2 | Outer diameter | 125 | 122.5 | – |
| h | Washer thickness | 8 | 6.8 | 9.2 |
- Approx. weight
- ≈ 695.65 kg per 1 000 pieces · Bare steel, before coating and packing.1.4 pieces per kg
