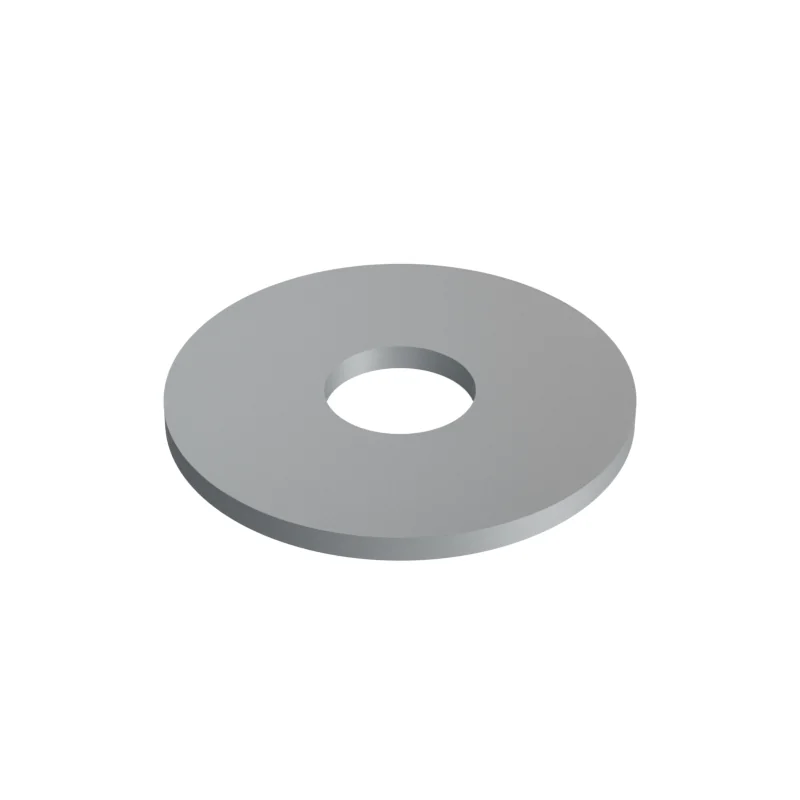

ISO 7094 M30 Extra Large Series Plain Washer
In stock in 3 material, grade and finish combinations.
Dimensions at M30
mm · ISO 7094 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M30 | – | – |
| d1 | Inner diameter | 33 | – | 34 |
| d2 | Outer diameter | 105 | 102.8 | – |
| h | Washer thickness | 6 | 5 | 7 |
- Approx. weight
- ≈ 367.56 kg per 1 000 pieces · Bare steel, before coating and packing.2.7 pieces per kg
