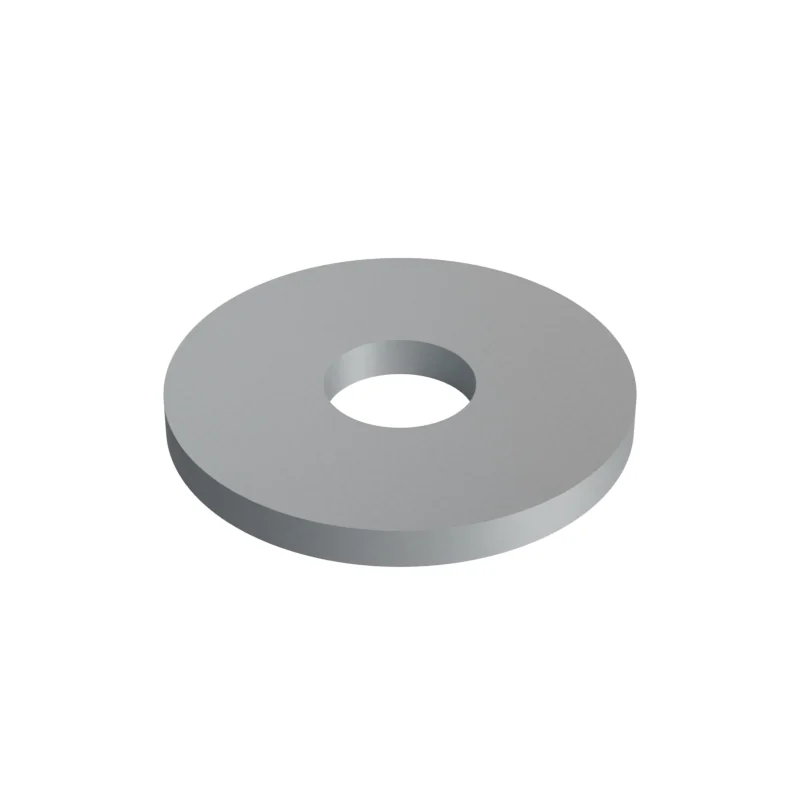

ISO 7094 M16 Extra Large Series Plain Washer
In stock in 3 material, grade and finish combinations.
Dimensions at M16
mm · ISO 7094 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M16 | – | – |
| d1 | Inner diameter | 17.5 | – | 18.2 |
| d2 | Outer diameter | 56 | 54.1 | – |
| h | Washer thickness | 5 | 4 | 6 |
- Approx. weight
- ≈ 87.23 kg per 1 000 pieces · Bare steel, before coating and packing.11.5 pieces per kg
