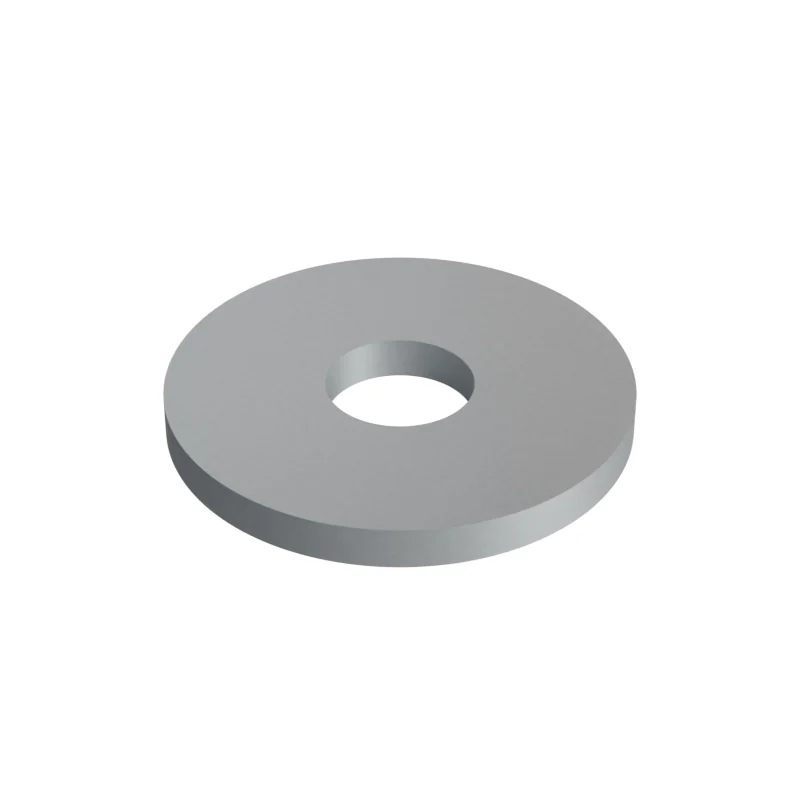

ISO 7094 M12 Extra Large Series Plain Washer
In stock in 3 material, grade and finish combinations.
Dimensions at M12
mm · ISO 7094 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| d1 | Inner diameter | 13.5 | – | 13.93 |
| d2 | Outer diameter | 44 | 42.4 | – |
| h | Washer thickness | 4 | 3.4 | 4.6 |
- Approx. weight
- ≈ 43.25 kg per 1 000 pieces · Bare steel, before coating and packing.23.1 pieces per kg
