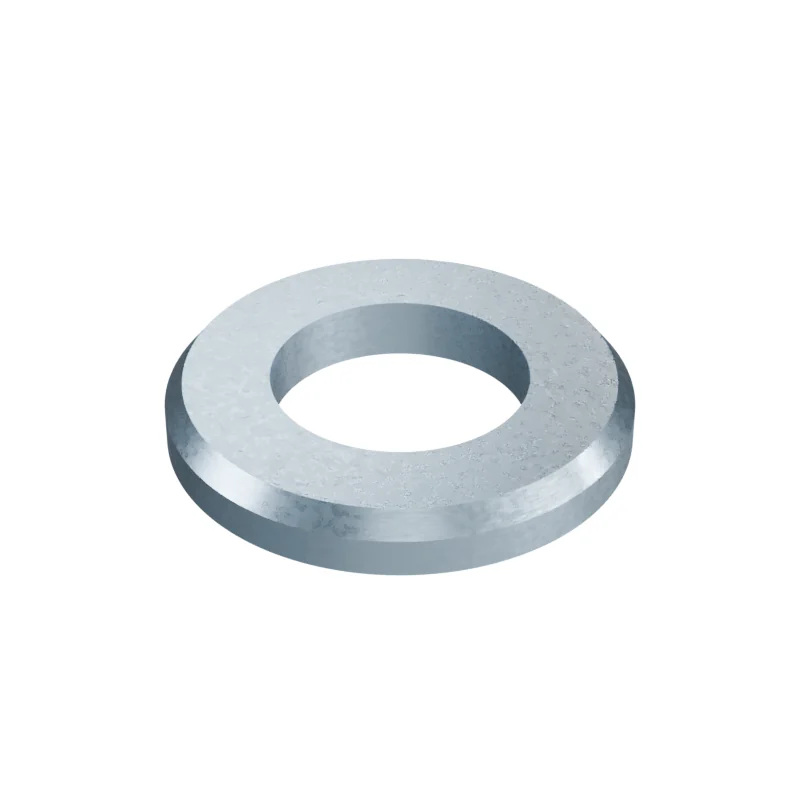

ISO 7090 M6 Chamfered Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M6
mm · ISO 7090 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M6 | – | – |
| d1 | Inner diameter | 6.4 | – | 6.62 |
| d2 | Outer diameter | 12 | 11.57 | – |
| h | Washer thickness | 1.6 | 1.4 | 1.8 |
- Approx. weight
- ≈ 1.02 kg per 1 000 pieces · Bare steel, before coating and packing.984 pieces per kg
