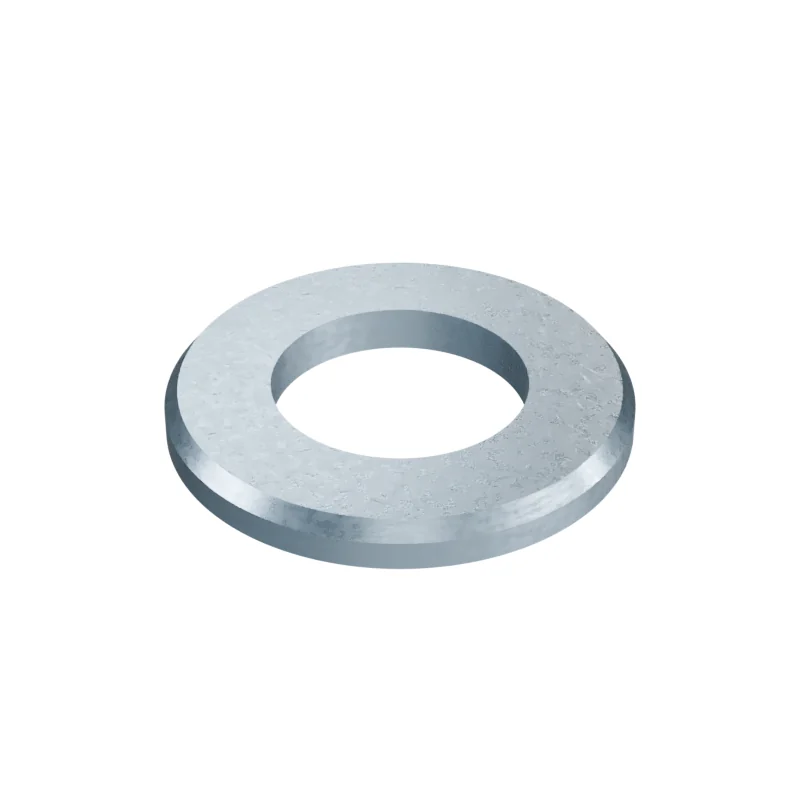

ISO 7090 M5 Chamfered Plain Washer
In stock in 6 material, grade and finish combinations.
Dimensions at M5
mm · ISO 7090 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M5 | – | – |
| d1 | Inner diameter | 5.3 | – | 5.48 |
| d2 | Outer diameter | 10 | 9.64 | – |
| h | Washer thickness | 1 | 0.9 | 1.1 |
- Approx. weight
- ≈ 0.44 kg per 1 000 pieces · Bare steel, before coating and packing.2255 pieces per kg
