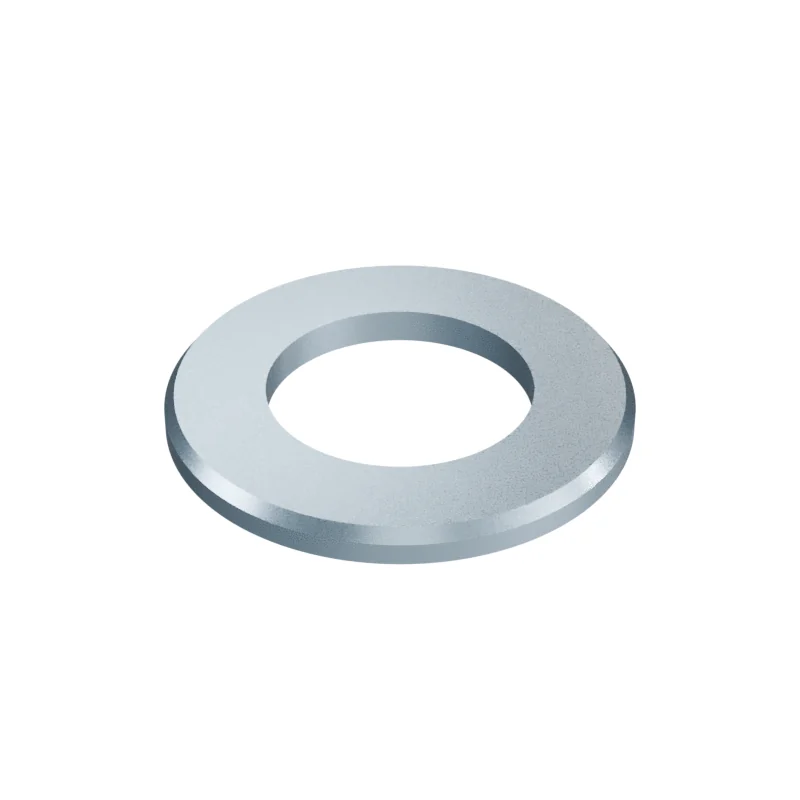

ISO 7090 M36 Chamfered Plain Washer
In stock in 8 material, grade and finish combinations.
Dimensions at M36
mm · ISO 7090 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M36 | – | – |
| d1 | Inner diameter | 37 | – | 37.62 |
| d2 | Outer diameter | 66 | 64.8 | – |
| h | Washer thickness | 5 | 4.4 | 5.6 |
- Approx. weight
- ≈ 92.08 kg per 1 000 pieces · Bare steel, before coating and packing.10.9 pieces per kg
