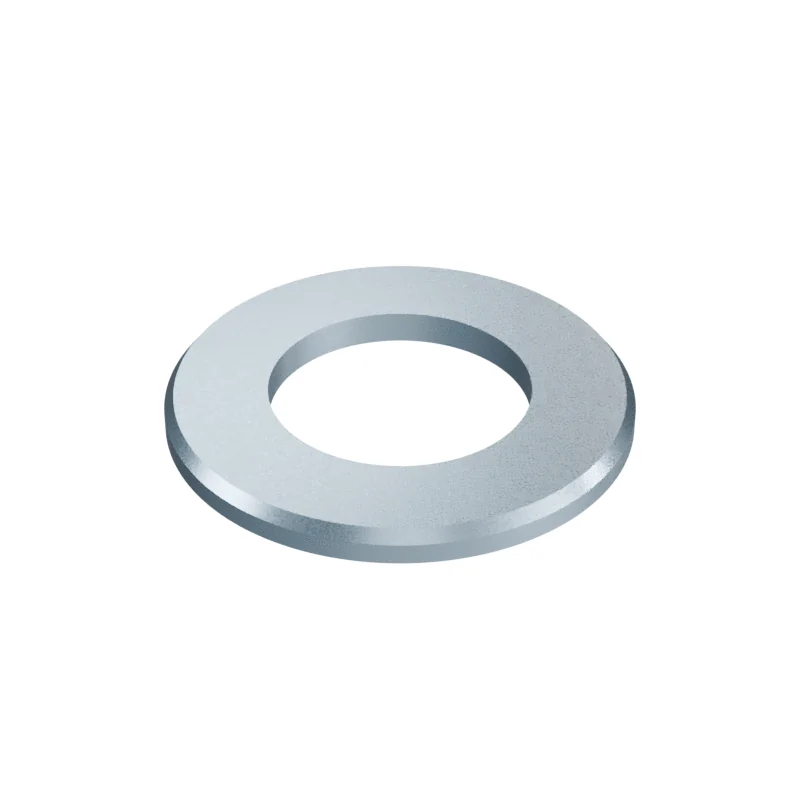

ISO 7090 M30 Chamfered Plain Washer
In stock in 8 material, grade and finish combinations.
Dimensions at M30
mm · ISO 7090 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M30 | – | – |
| d1 | Inner diameter | 31 | – | 31.39 |
| d2 | Outer diameter | 56 | 55.26 | – |
| h | Washer thickness | 4 | 3.7 | 4.3 |
- Approx. weight
- ≈ 53.64 kg per 1 000 pieces · Bare steel, before coating and packing.18.6 pieces per kg
