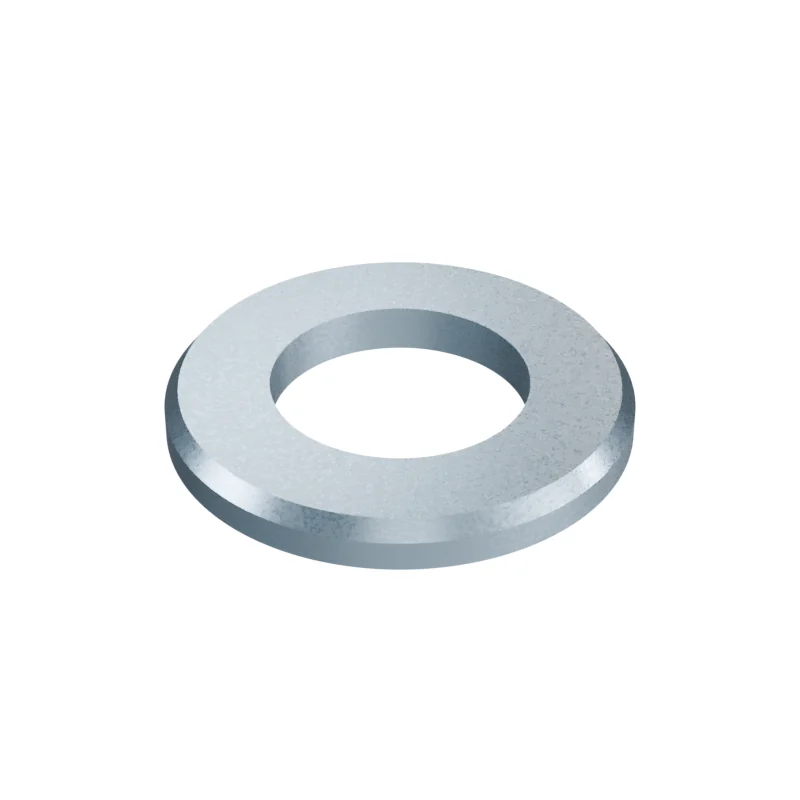

ISO 7090 M12 Chamfered Plain Washer
In stock in 8 material, grade and finish combinations.
Dimensions at M12
mm · ISO 7090 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M12 | – | – |
| d1 | Inner diameter | 13 | – | 13.27 |
| d2 | Outer diameter | 24 | 23.48 | – |
| h | Washer thickness | 2.5 | 2.3 | 2.7 |
- Approx. weight
- ≈ 6.27 kg per 1 000 pieces · Bare steel, before coating and packing.159 pieces per kg
