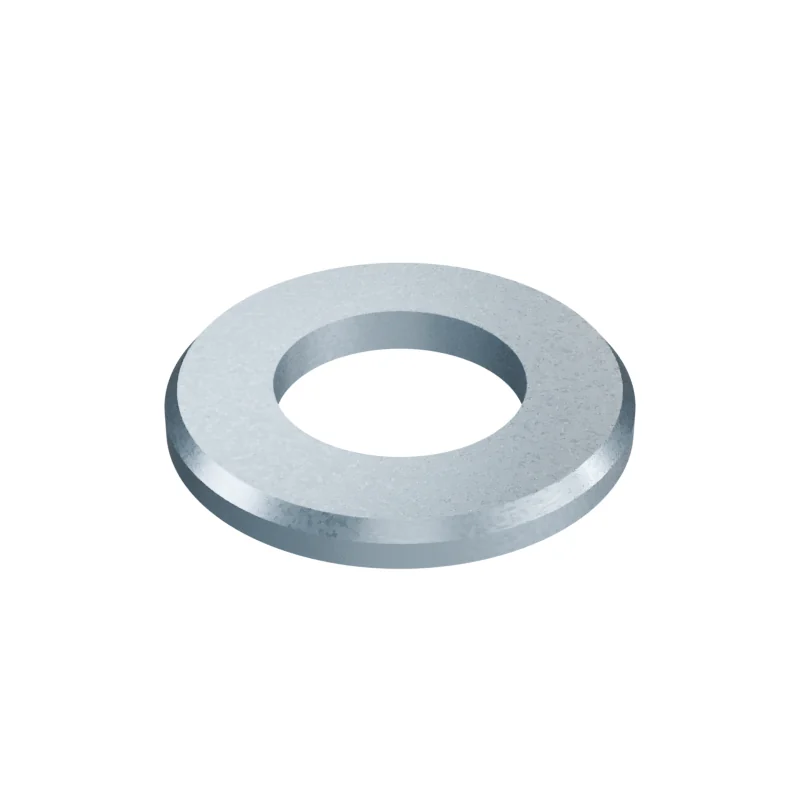

ISO 7090 M10 Chamfered Plain Washer
In stock in 8 material, grade and finish combinations.
Dimensions at M10
mm · ISO 7090 · 2000 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| d1 | Inner diameter | 10.5 | – | 10.77 |
| d2 | Outer diameter | 20 | 19.48 | – |
| h | Washer thickness | 2 | 1.8 | 2.2 |
- Approx. weight
- ≈ 3.57 kg per 1 000 pieces · Bare steel, before coating and packing.280 pieces per kg
