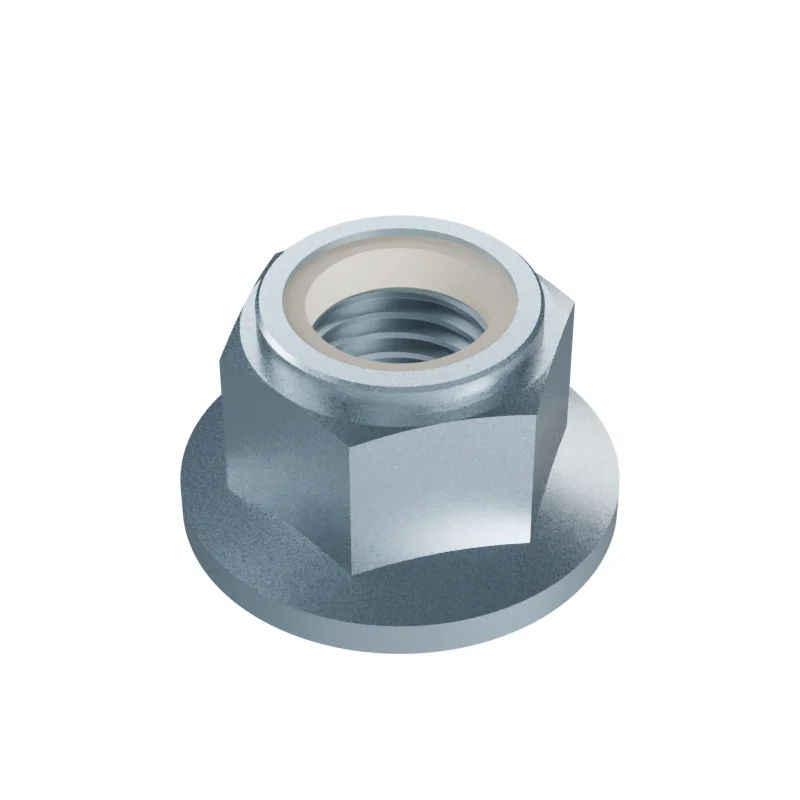

DIN 6926 M16 Non-Metallic Insert Flange Nut
In stock in 16 material, grade and finish combinations.
Dimensions at M16
mm · DIN 6926 · 1983-11 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M16 | – | – |
| P | Thread pitch | 2 | – | – |
| s | Width across flats | – | – | 24 |
| e | Width across corners | – | 26.75 | – |
| m | Nut height | 15.3 | – | – |
| dc | Flange diameter | 34.5 | – | – |
- Approx. weight
- ≈ 39.33 kg per 1 000 pieces · Bare steel, before coating and packing.25.4 pieces per kg
