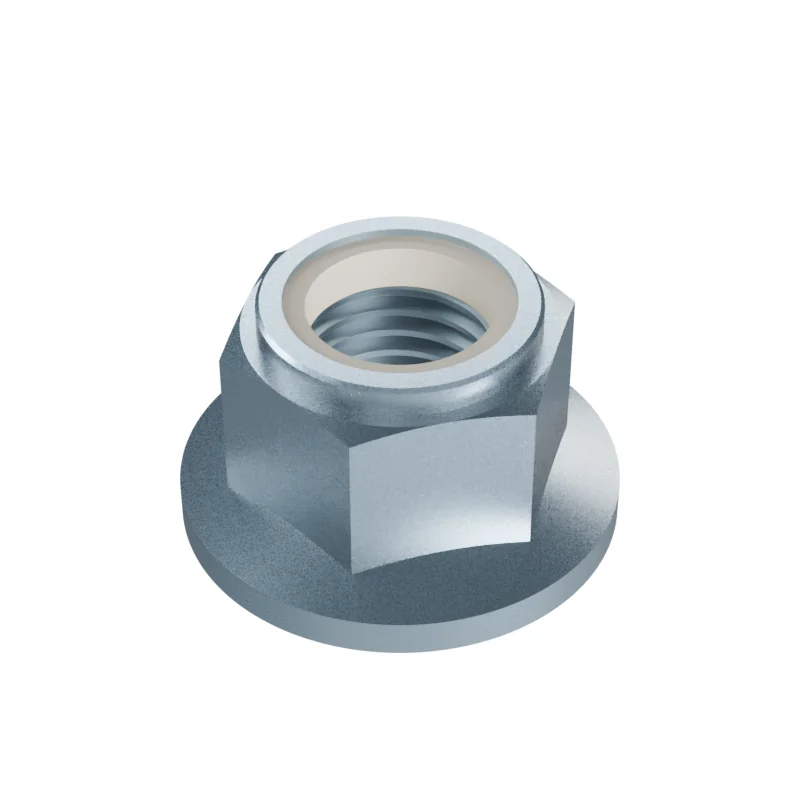

DIN 6926 M20 Non-Metallic Insert Flange Nut
In stock in 16 material, grade and finish combinations.
Dimensions at M20
mm · DIN 6926 · 1983-11 · withdrawn| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M20 | – | – |
| P | Thread pitch | 2.5 | – | – |
| s | Width across flats | – | – | 30 |
| e | Width across corners | – | 32.95 | – |
| m | Nut height | 18.9 | – | – |
| dc | Flange diameter | 42.8 | – | – |
- Approx. weight
- ≈ 75.86 kg per 1 000 pieces · Bare steel, before coating and packing.13.2 pieces per kg
