FASTENER STANDARD
M24

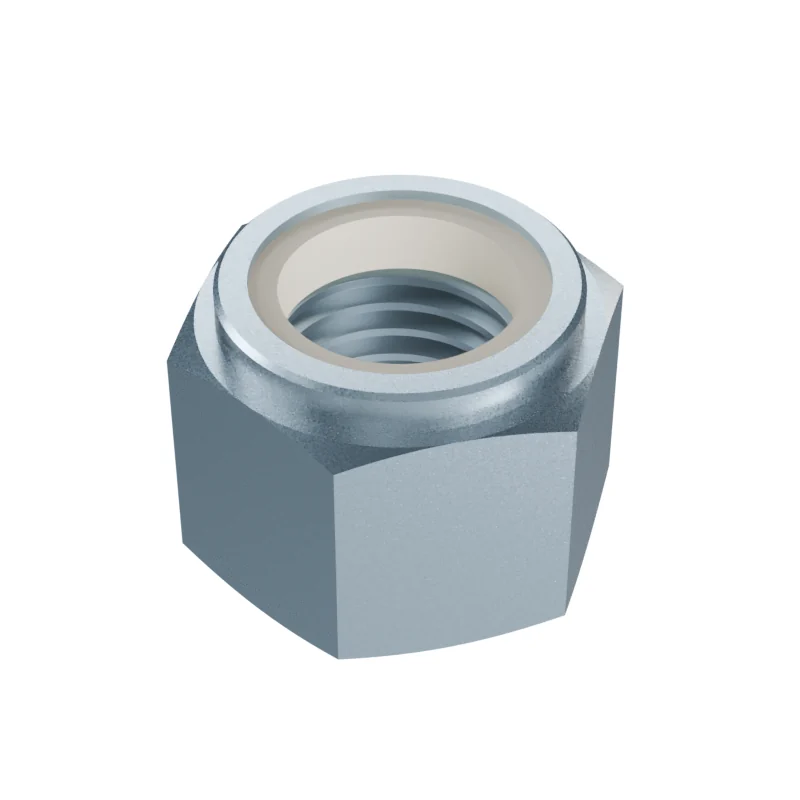

Prevailing torque type hexagon nuts with non-metallic insert, style 1 — ISO 7040 / DIN 982
M24 is listed in the confirmed supply specifications of the products shown below. Dimensions are referenced against ISO 7040 / DIN 982; where these standards differ, both values are shown so the correct one can be confirmed before ordering. Packing quantity, stock status and mechanical property class are confirmed in the quotation. Column symbols: P = thread pitch; e = width across corners; h max = thickness, maximum; h min = thickness, minimum; m min = nut height, minimum; s = width across flats; s min = width across flats, minimum.
Edition to confirm · Specification| Standard | Status | P (mm) | daMax (mm) | daMin (mm) | bearingDiameterMin (mm) | e (mm) | h max (mm) | h min (mm) | m min (mm) | wrenchingHeightMin (mm) | s (mm) | s min (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ISO 7040 | Current | 3 | 25.9 | 24 | 33.25 | 39.55 | 27.1 | 25 | 20.2 | 16.16 | 36 | 35 |
| DIN 982 | Historical | 3 | 25.9 | 24 | 33.2 | 39.55 | 28 | 26.7 | 20.2 | 16.16 | 36 | 35 |
Compare before substituting
ISO 7040DIN 982 →DIN 982 / M24 / bearingDiameterMin: ISO 7040 33.25 · DIN 982 33.2
DIN 982 / M24 / hMax: ISO 7040 27.1 · DIN 982 28
DIN 982 / M24 / hMin: ISO 7040 25 · DIN 982 26.7
