DIN 9021 M3 Large Series Plain Washer
Made to order in 10 material, grade and finish combinations.
Dimensions at M3
mm · DIN 9021 · 1990-03 · withdrawn| Dimension | Nominal | Min | Max | ISO 7093-1 | |
|---|---|---|---|---|---|
| d | Thread size | M3 | – | – | M3 |
| d1 | Inner diameter | 3.2 | – | – | 3.2 |
| d2 | Outer diameter | 9 | – | – | 9 |
| h | Washer thickness | 0.8 | – | – | 0.7–0.9 |
| Approx. mass | 0.349 | – | – | — |
- ISO 7093-1
- Values in bold differ from DIN 9021.
- Approx. weight
- ≈ 0.35 kg per 1 000 pieces · Bare steel, before coating and packing.2865 pieces per kg

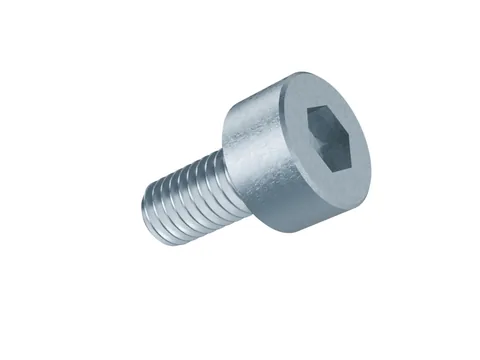

Parts that mate with M3
