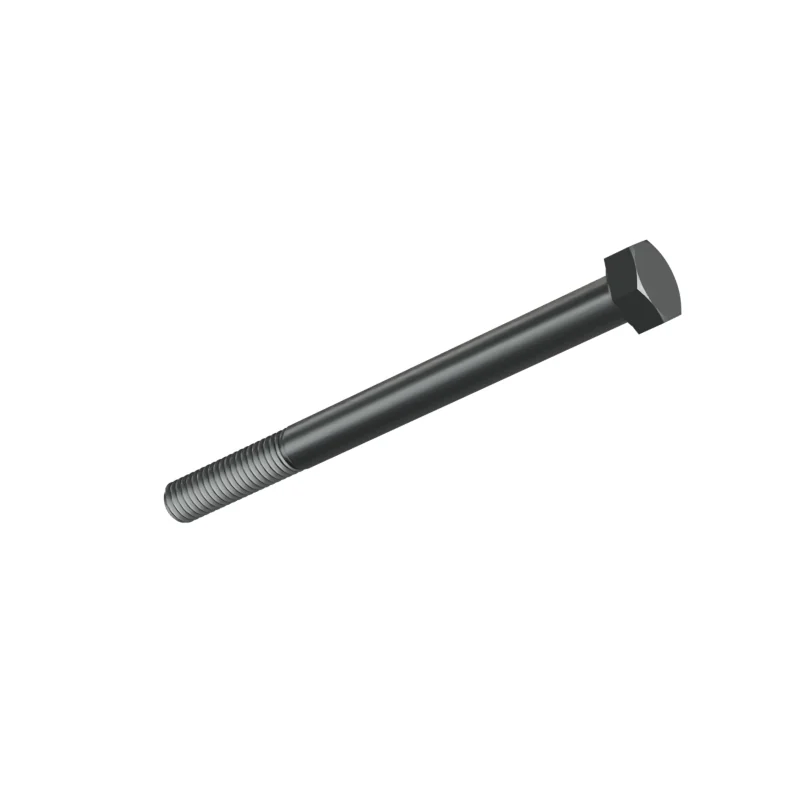

DIN 931 M5 x 60 Partial Thread Hex Bolt
In stock in 19 material, grade and finish combinations.
Dimensions at M5 x 60
mm · DIN 931 · 1987 · withdrawn| Dimension | Nominal | Min | Max | ISO 4014 | |
|---|---|---|---|---|---|
| d | Thread size | M5 | – | – | M5 |
| P | Thread pitch | 0.8 | – | – | 0.8 |
| l | Length | 60 | – | – | 60 |
| s | Width across flats | – | – | 8 | 8 |
| e | Width across corners | – | 8.79 | – | 8.79 |
| k | Head height | 3.5 | – | – | 3.5 |
| b | Thread length | 16 | – | – | 16 |
- ISO 4014
- Values in bold differ from DIN 931.
- Length under head
- 60 mmLonger than the DIN 931 dimension table (to 50 mm) — the standard itself provides for it
- Approx. weight
- ≈ 10.24 kg per 1 000 pieces · Bare steel, before coating and packing.97.7 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine5.3 mm
Clearance hole · medium5.5 mm
Clearance hole · coarse5.8 mm
Tap drill4.2 mm
