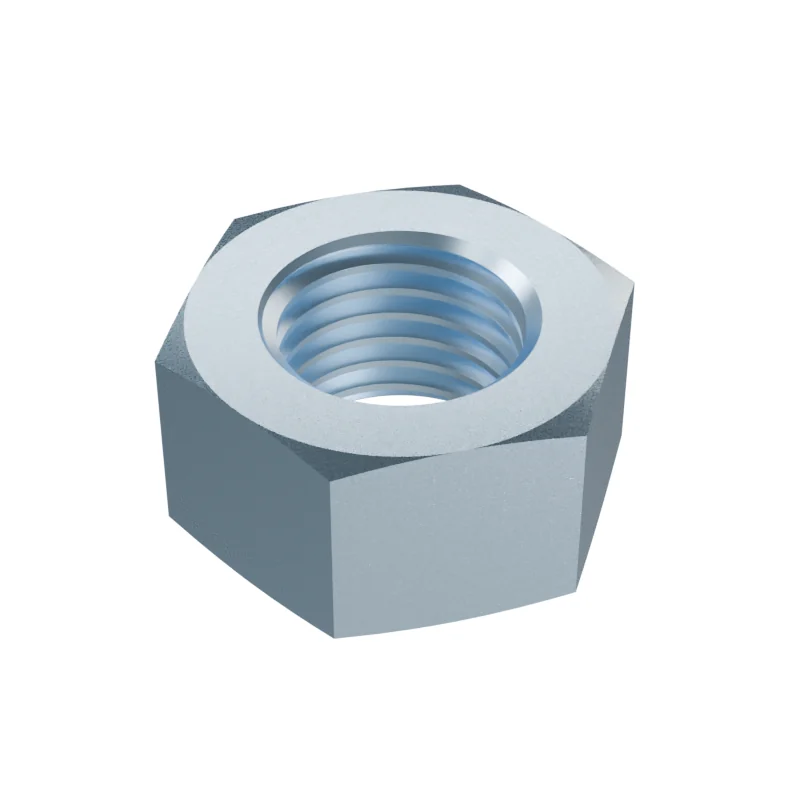

DIN 934 M30 Hex Nut22 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 934
- Thread
- M30 · pitch 3.5 mm
- Drive
- 46 mm spanner · e 50.85 mm
- Weight
- 244.41 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering4.1 pieces per kg
Supplied to DIN 934 M30. ISO 4032 (m 25.6 mm against 24) at this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Full comparison →
Order M30
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
These are not identical at M30 — the difference is shown against each standard above. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 6 | Zinc Plated | — | |
| Carbon Steel | 6 | Hot Dip Galvanized | — | |
| Carbon Steel | 6 | Dacromet | — | |
| Carbon Steel | 6 | Blackened | — | |
| Carbon Steel | 6 | Plain | — | |
| Carbon Steel | 6 | Phosphate | — | |
| Carbon Steel | 8 | Zinc Plated | — | |
| Carbon Steel | 8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8 | Dacromet | — | |
| Carbon Steel | 8 | Blackened | — | |
| Carbon Steel | 8 | Plain | — | |
| Carbon Steel | 8 | Phosphate | — | |
| Carbon Steel | 10 | Zinc Plated | — | |
| Carbon Steel | 10 | Hot Dip Galvanized | — | |
| Carbon Steel | 10 | Dacromet | — | |
| Carbon Steel | 10 | Blackened | — | |
| Carbon Steel | 10 | Plain | — | |
| Carbon Steel | 10 | Phosphate | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M30
| Dimension | Value |
|---|---|
| P | 3.5 mm |
| s | 46 mm |
| e | 50.85 mm |
| m | 24 mm |
| Weight | 244.41 kg / 1000 pcs |
| Pieces per kg | 4.1 |
Plating adds thickness — state the finish on the order.
