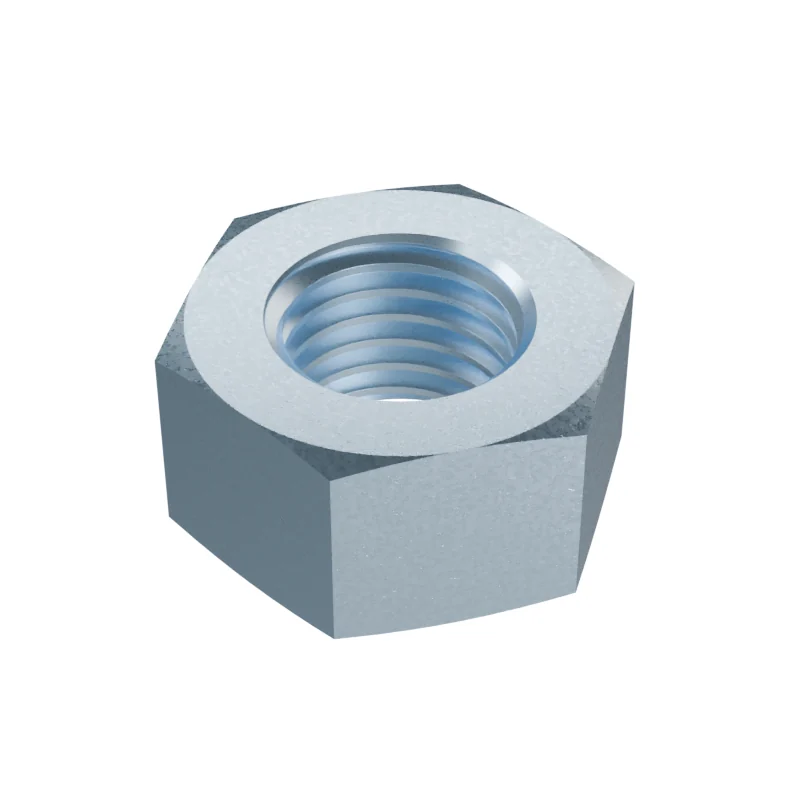

ISO 8673 M10 Fine Pitch Hex Nut
In stock in 41 material, grade and finish combinations.
Dimensions at M10
mm · ISO 8673 · 2023 edition| Dimension | Nominal | Min | Max | |
|---|---|---|---|---|
| d | Thread size | M10 | – | – |
| P | Thread pitch | 1 | – | – |
| s | Width across flats | – | – | 16 |
| e | Width across corners | – | 17.77 | – |
| m | Nut height | 8.4 | – | – |
- Approx. weight
- ≈ 9.75 kg per 1 000 pieces · Bare steel, before coating and packing.103 pieces per kg
