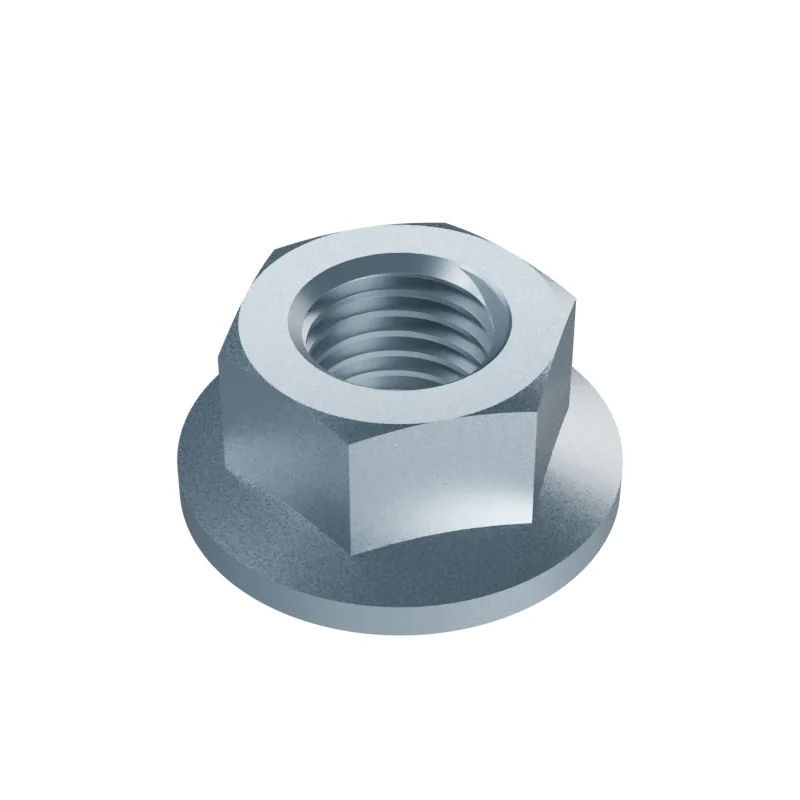

DIN 6923 M16 Hex Flange Nut16 combinations of material, property class and finish supplied in this size.
- Standard
- DIN 6923
- Thread
- M16 · pitch 2 mm
- Drive
- 24 mm spanner · e 26.75 mm
- Weight
- 43.70 kg per 1 000 pieces · Theoretical, from nominal geometry — confirm before ordering22.9 pieces per kg
Supplied to DIN 6923 M16 — the figures shown here match ISO 4161. All 2 record the same figures in this size. Compared on the columns shown here only — product grade, tolerance class, length range, material and property-class references are set by each standard separately. We produce to whichever one your drawing calls out. Compare all sizes →
Order M16
Set a quantity on as many rows as you need. Not listed? We make to your drawing — send it with the enquiry.
Every standard listed here records the same figures at M16. Your choice is carried into the inquiry and the quotation.
| Material | Class | Finish | Quantity | Net weight |
|---|---|---|---|---|
| Carbon Steel | 8 | Zinc Plated | — | |
| Carbon Steel | 8 | Hot Dip Galvanized | — | |
| Carbon Steel | 8 | Dacromet | — | |
| Carbon Steel | 8 | Blackened | — | |
| Carbon Steel | 8 | Plain | — | |
| Carbon Steel | 8 | Phosphate | — | |
| Carbon Steel | 10 | Zinc Plated | — | |
| Carbon Steel | 10 | Hot Dip Galvanized | — | |
| Carbon Steel | 10 | Dacromet | — | |
| Carbon Steel | 10 | Blackened | — | |
| Carbon Steel | 10 | Plain | — | |
| Carbon Steel | 10 | Phosphate | — | |
| Stainless Steel | A2-70 | Plain | — | |
| Stainless Steel | A2-70 | Passivated | — | |
| Stainless Steel | A4-80 | Plain | — | |
| Stainless Steel | A4-80 | Passivated | — |
Dimensions at M16
| Dimension | Value |
|---|---|
| P | 2 mm |
| s | 24 mm |
| e | 26.75 mm |
| m | 16 mm |
| Weight | 43.70 kg / 1000 pcs |
| Pieces per kg | 22.9 |
Plating adds thickness — state the finish on the order.
