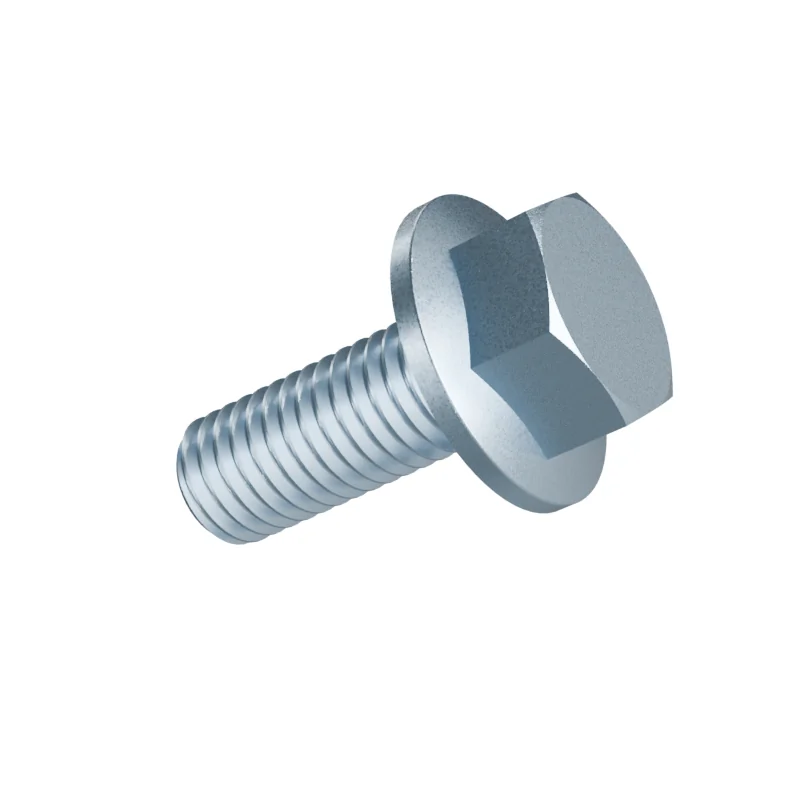

DIN 6921 M10 x 25 Hex Flange Bolt
In stock in 21 material, grade and finish combinations.
Dimensions at M10 x 25
mm · DIN 6921 · 1983-06 · withdrawn| Dimension | Nominal | Min | Max | ISO 4162 | |
|---|---|---|---|---|---|
| d | Thread size | M10 | – | – | M10 |
| P | Thread pitch | 1.5 | – | – | 1.5 |
| l | Length | 25 | – | – | 25 |
| s | Width across flats | – | – | 15 | 13 |
| e | Width across corners | – | 16.5 | – | 14.08 |
| dc | Flange diameter | 22.3 | – | – | 20.8 |
| k | Head height | 9.2 | – | – | 9.7 |
- ISO 4162
- Values in bold differ from DIN 6921.
- Length under head
- 25 mm · 24.58–25.42 mm to DIN 6921 product grade A
- Approx. weight
- ≈ 26.32 kg per 1 000 pieces · Bare steel, before coating and packing.38.0 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine10.5 mm
Clearance hole · medium11 mm
Clearance hole · coarse12 mm
Tap drill8.5 mm
