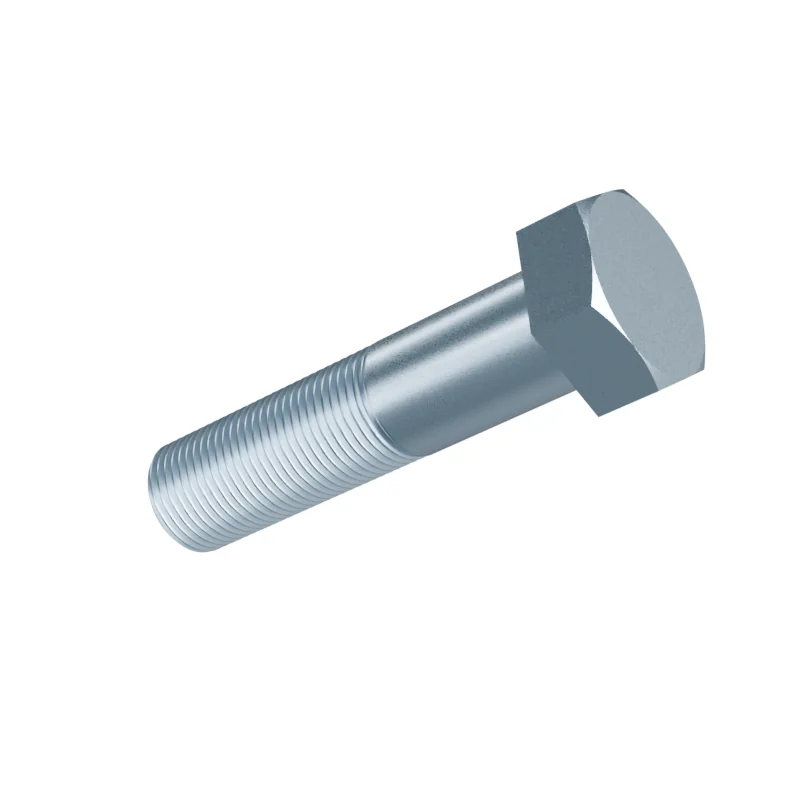

DIN 960 M24 x 100 Fine Pitch Hex Bolt
In stock in 20 material, grade and finish combinations.
Dimensions at M24 x 100
mm · DIN 960 · dimensions from 1970-11 · 1990-01, withdrawn| Dimension | Nominal | Min | Max | ISO 8765 | |
|---|---|---|---|---|---|
| d | Thread size | M24 | – | – | M24 |
| Thread pitch | 2 | – | – | 2 | |
| l | Length | 100 | – | – | 100 |
| s | Width across flats | – | – | 36 | 36 |
| e | Width across corners | – | 39.98 | – | 39.98 |
| k | Head height | 15 | – | – | 15 |
- ISO 8765
- Values in bold differ from DIN 960.
- Length under head
- 100 mm
- Approx. weight
- ≈ 481.00 kg per 1 000 pieces · Bare steel, before coating and packing.2.1 pieces per kg
Holes for this thread
ISO 273 · ISO 2306Clearance hole · fine25 mm
Clearance hole · medium26 mm
Clearance hole · coarse28 mm
Tap drill22 mm
